GxSysPrimitive Class Reference

プリミティブ描画システムクラス More...

#include <GxSysPrimitive.h>

Inheritance diagram for GxSysPrimitive:

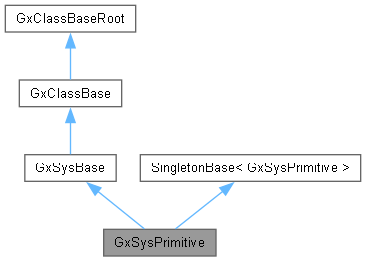

Collaboration diagram for GxSysPrimitive:

Public Member Functions
初期化
	GxSysPrimitive (void)
	コンストラクタ
	~GxSysPrimitive (void) override
	デストラクタ

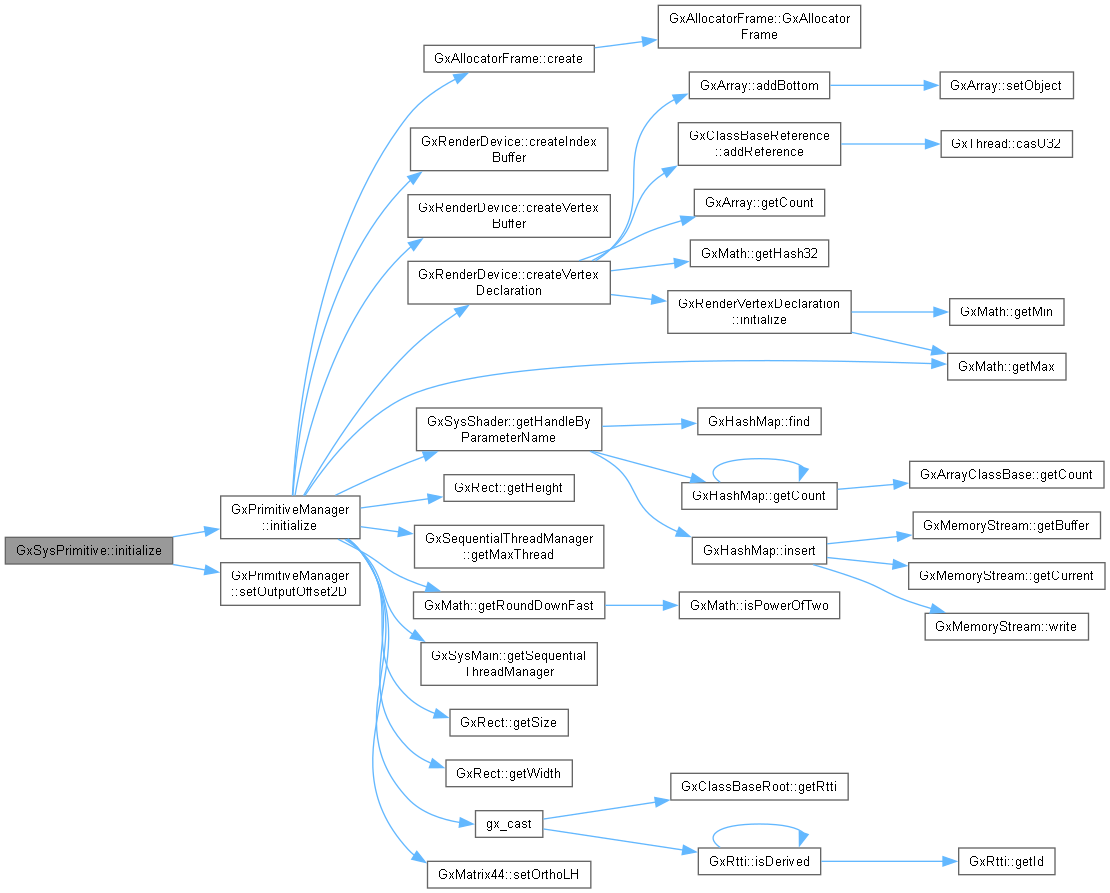

b32	initialize (const GxClassBase *pInitialInformation) override
	初期化

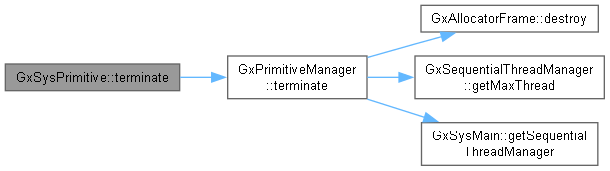

void	terminate (void) override
	終了処理

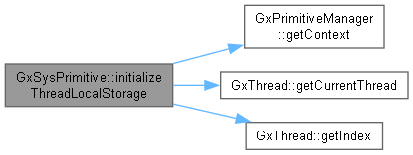

virtual b32	initializeThreadLocalStorage (u32 workerThreadIndex)
	スレッドローカルストレージ初期化関数
操作
virtual void	beginPrimitiveRender (void)
	描画の開始
virtual void	endPrimitiveRender (void)
	描画の終了
GxVector2	transformWorldTo2D (const GxVector3 &worldPosision) const
	ワールド座標→2D座標
Public Member Functions inherited from GxSysBase
template<typename T >
T *	getModule (void) const
	モジュールを取得
	GxSysBase (void)
	デフォルトコンストラクタ
	~GxSysBase (void) override
	デストラクタ
virtual void	update (void)
	更新
b32	isLocked (void)
	クリティカルセクションのロック状態を確認する
void	sleep (f32 time)
	スリープ(スクリプト用)
Public Member Functions inherited from GxClassBase
constexpr	GxClassBase (void)
	コンストラクタ
constexpr	GxClassBase (const GxClassBase &base)
	コピーコンストラクタ
	~GxClassBase (void) override
	デストラクタ
Public Member Functions inherited from GxClassBaseRoot
constexpr	GxClassBaseRoot (void)
	コンストラクタ
constexpr	GxClassBaseRoot (const GxClassBaseRoot &)
	コピーコンストラクタ
virtual	~GxClassBaseRoot (void)
	デストラクタ
constexpr GxClassBaseRoot &	operator= (const GxClassBaseRoot &)
	代入演算子
virtual GxRtti &	getRtti (void) const =0
	Rttiの取得
virtual GX_FORCE_INLINE const GxTypedObject *	getDefaultObject (void)
	デフォルトオブジェクトを取得
GX_FORCE_INLINE b32	isDefaultObject (void)
	デフォルトオブジェクト判定
Public Member Functions inherited from SingletonBase< GxSysPrimitive >
	SingletonBase (void)
	コンストラクタ
	~SingletonBase (void)
	デストラクタ

アクセサ
GxSize	getResolution2D (void) const
	2D描画解像度の取得
GxRect	getSafetyArea (void) const
	2Dセーフティエリアの取得
constexpr void	setSubPriority2D (u32 subPriority)
	2Dサブプライオリティの設定
constexpr u32	getSubPriority2D (void) const
	2Dサブプライオリティの取得
constexpr void	setSubPriority3D (u32 subPriority)
	3Dサブプライオリティの設定
constexpr u32	getSubPriority3D (void) const
	3Dサブプライオリティの取得
GX_FORCE_INLINE void	setUseVirtualResolutionHudSet (b32 state)
	HUDセットに仮想解像度を使うかの設定 (常に true を使うように廃止予定)
GX_FORCE_INLINE b32	isUseVirtualResolutionHudSet (void) const
	HUDセットに仮想解像度を使うかを取得
GX_FORCE_INLINE const GxPoint2 &	getOutputOffset2D (void) const
	2Dプリミティブ全体の位置オフセットを取得
GX_FORCE_INLINE void	setOutputOffset2D (const GxPoint2 &offset)
	2Dプリミティブ全体の位置オフセットを設定
GX_FORCE_INLINE void	set2DScissorRect (const GxRect &rect, f32 priority, u32 viewFlag=0xFFFFFFFF)
	シザリング矩形の設定
GX_FORCE_INLINE b32	isRenderToBackBuffer2D (void) const
	2Dはバックバッファに描画するか否か判定
GX_FORCE_INLINE GxPrimitiveVertex *	draw2DLineList (u32 vertexCount, const GxPrimitiveMaterial &material, f32 priority)
	2Dラインリスト
GX_FORCE_INLINE GxPrimitiveVertex *	draw2DLineStrip (u32 vertexCount, const GxPrimitiveMaterial &material, f32 priority)
	2Dラインストリップ
GX_FORCE_INLINE GxPrimitiveVertex *	draw2DTriangleList (u32 vertexCount, const GxPrimitiveMaterial &material, f32 priority)
	2Dトライアングルリスト
GX_FORCE_INLINE GxPrimitiveVertex *	draw2DTriangleStrip (u32 vertexCount, const GxPrimitiveMaterial &material, f32 priority)
	2Dトライアングルストリップ
GX_FORCE_INLINE GxPrimitiveVertex *	draw2DTriangleFan (u32 vertexCount, const GxPrimitiveMaterial &material, f32 priority)
	2Dトライアングルファン
GX_FORCE_INLINE GxPrimitiveVertex *	draw2DQuadList (u32 vertexCount, const GxPrimitiveMaterial &material, f32 priority)
	2Dクアッドリスト
void	draw2DPoint (const GxVector3 &position, const GxColor color, const GxPrimitiveMaterial &material=GxPrimitiveMaterial::DEFAULT_2D, b32 useAutoScale=true)
	2D点
void	draw2DLineF (const GxVector3 &position0, const GxVector3 &position1, const GxColor color, const GxPrimitiveMaterial &material=GxPrimitiveMaterial::DEFAULT_2D, b32 useAutoScale=true)
	2Dライン(Flat)
void	draw2DLineG (const GxVector3 &position0, const GxVector3 &position1, const GxColor color0, const GxColor color1, const GxPrimitiveMaterial &material=GxPrimitiveMaterial::DEFAULT_2D, b32 useAutoScale=true)
	2Dライン(Gradation)

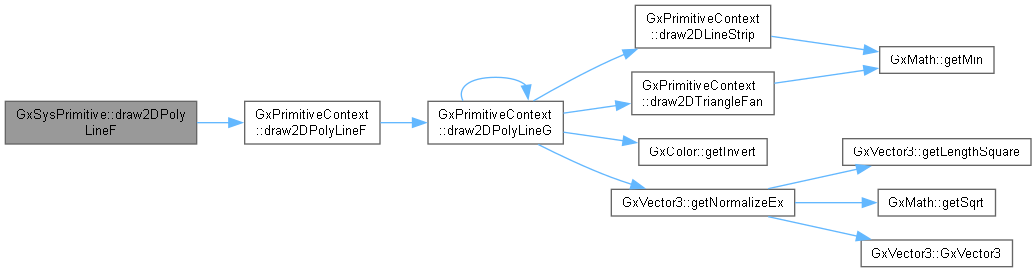

void	draw2DPolyLineF (const GxVector3 &position0, const GxVector3 &position1, u32 width, const GxColor color, PRIMITIVE_FILL_MODE fillMode=PRIMITIVE_FILL_MODE::SOLID, const GxPrimitiveMaterial &material=GxPrimitiveMaterial::DEFAULT_2D, b32 useAutoScale=true)
	2Dポリライン(Flat)

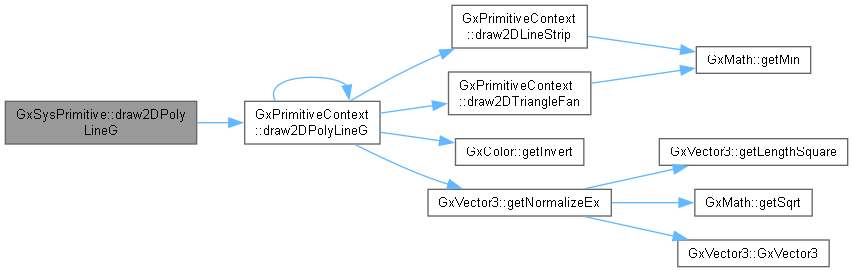

void	draw2DPolyLineG (const GxVector3 &position0, const GxVector3 &position1, u32 width, const GxColor color0, const GxColor color1, PRIMITIVE_FILL_MODE fillMode=PRIMITIVE_FILL_MODE::SOLID, const GxPrimitiveMaterial &material=GxPrimitiveMaterial::DEFAULT_2D, b32 useAutoScale=true)
	2Dポリライン(Gradation)
void	draw2DTriangleF (const GxVector3 &position0, const GxVector3 &position1, const GxVector3 &position2, const GxColor color, PRIMITIVE_FILL_MODE fillMode=PRIMITIVE_FILL_MODE::SOLID, const GxPrimitiveMaterial &material=GxPrimitiveMaterial::DEFAULT_2D, b32 useAutoScale=true)
	2D三角形(Flat)
void	draw2DTriangleG (const GxVector3 &position0, const GxVector3 &position1, const GxVector3 &position2, const GxColor color0, const GxColor color1, const GxColor color2, PRIMITIVE_FILL_MODE fillMode=PRIMITIVE_FILL_MODE::SOLID, const GxPrimitiveMaterial &material=GxPrimitiveMaterial::DEFAULT_2D, b32 useAutoScale=true)
	2D三角形(Gradation)
void	draw2DRectF (const GxRectF &rect, f32 z, const GxColor color, PRIMITIVE_FILL_MODE fillMode=PRIMITIVE_FILL_MODE::SOLID, const GxPrimitiveMaterial &material=GxPrimitiveMaterial::DEFAULT_2D, b32 useAutoScale=true)
	2D四角形(Flat)
void	draw2DRectF (const GxRectF &rect, f32 positionZ, f32 z, const GxColor color, PRIMITIVE_FILL_MODE fillMode=PRIMITIVE_FILL_MODE::SOLID, const GxPrimitiveMaterial &material=GxPrimitiveMaterial::DEFAULT_2D, b32 useAutoScale=true)
	2D四角形(Z指定あり、Flat)

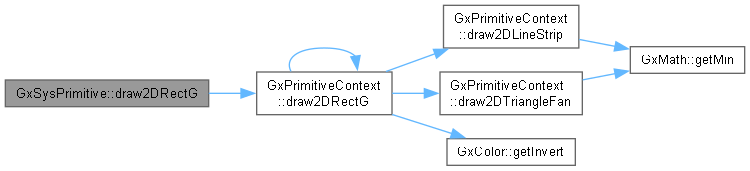

void	draw2DRectG (const GxRectF &rect, f32 z, const GxColor color0, const GxColor color1, const GxColor color2, const GxColor color3, PRIMITIVE_FILL_MODE fillMode=PRIMITIVE_FILL_MODE::SOLID, const GxPrimitiveMaterial &material=GxPrimitiveMaterial::DEFAULT_2D, b32 useAutoScale=true)
	2D四角形(Gradation)
void	draw2DRectTextureF (const GxRectF &rect, f32 z, const GxColor color, const GxFloat2 &uv0, const GxFloat2 &uv1, const GxPrimitiveMaterial &material=GxPrimitiveMaterial::DEFAULT_2D, const GxFloat2 &uvSecond0=GxFloat2(0.f, 0.f), const GxFloat2 &uvSecond1=GxFloat2(1.f, 1.f), b32 useAutoScale=true)
	2Dテクスチャ付き四角形(Flat)
void	draw2DRectTextureF (const GxRectF &rect, f32 positionZ, f32 z, const GxColor color, const GxFloat2 &uv0, const GxFloat2 &uv1, const GxPrimitiveMaterial &material=GxPrimitiveMaterial::DEFAULT_2D, const GxFloat2 &uvSecond0=GxFloat2(0.f, 0.f), const GxFloat2 &uvSecond1=GxFloat2(1.f, 1.f), b32 useAutoScale=true)
	2Dテクスチャ付き四角形(Z値指定あり、Flat)
void	draw2DRectTextureG (const GxRectF &rect, f32 z, const GxColor color0, const GxColor color1, const GxColor color2, const GxColor color3, const GxFloat2 &uv0, const GxFloat2 &uv1, const GxPrimitiveMaterial &material=GxPrimitiveMaterial::DEFAULT_2D, const GxFloat2 &uvSecond0=GxFloat2(0.f, 0.f), const GxFloat2 &uvSecond1=GxFloat2(1.f, 1.f), b32 useAutoScale=true)
	2Dテクスチャ付き四角形(Gradation)
void	draw2DRectTextureG (const GxRectF &rect, f32 positionZ, f32 z, const GxColor color0, const GxColor color1, const GxColor color2, const GxColor color3, const GxFloat2 &uv0, const GxFloat2 &uv1, const GxPrimitiveMaterial &material=GxPrimitiveMaterial::DEFAULT_2D, const GxFloat2 &uvSecond0=GxFloat2(0.f, 0.f), const GxFloat2 &uvSecond1=GxFloat2(1.f, 1.f), b32 useAutoScale=true)
	2Dテクスチャ付き四角形(Z指定あり、Gradation)
void	draw2DRectF (const GxRectF &rect, f32 z, const GxVector2 &rotateCenter, const f32 rotateRadian, const GxColor color, PRIMITIVE_FILL_MODE fillMode=PRIMITIVE_FILL_MODE::SOLID, const GxPrimitiveMaterial &material=GxPrimitiveMaterial::DEFAULT_2D, b32 useAutoScale=true)
	2D回転あり四角形(Flat)
void	draw2DRectG (const GxRectF &rect, f32 z, const GxVector2 &rotateCenter, const f32 rotateRadian, const GxColor color0, const GxColor color1, const GxColor color2, const GxColor color3, PRIMITIVE_FILL_MODE fillMode=PRIMITIVE_FILL_MODE::SOLID, const GxPrimitiveMaterial &material=GxPrimitiveMaterial::DEFAULT_2D, b32 useAutoScale=true)
	2D回転あり四角形(Gradation)
void	draw2DRectTextureF (const GxRectF &rect, f32 z, const GxVector2 &rotateCenter, const f32 rotateRadian, const GxColor color, const GxFloat2 &uv0, const GxFloat2 &uv1, const GxPrimitiveMaterial &material=GxPrimitiveMaterial::DEFAULT_2D, const GxFloat2 &uvSecond0=GxFloat2(0.f, 0.f), const GxFloat2 &uvSecond1=GxFloat2(1.f, 1.f), b32 useAutoScale=true)
	2Dテクスチャ付き回転あり四角形(Flat)
void	draw2DRectTextureF (const GxRectF &rect, f32 positionZ, f32 z, const GxVector2 &rotateCenter, const f32 rotateRadian, const GxColor color, const GxFloat2 &uv0, const GxFloat2 &uv1, const GxPrimitiveMaterial &material=GxPrimitiveMaterial::DEFAULT_2D, const GxFloat2 &uvSecond0=GxFloat2(0.f, 0.f), const GxFloat2 &uvSecond1=GxFloat2(1.f, 1.f), b32 useAutoScale=true)
	2Dテクスチャ付き回転あり四角形(Z値指定あり、Flat)
void	draw2DRectTextureG (const GxRectF &rect, f32 z, const GxVector2 &rotateCenter, const f32 rotateRadian, const GxColor color0, const GxColor color1, const GxColor color2, const GxColor color3, const GxFloat2 &uv0, const GxFloat2 &uv1, const GxPrimitiveMaterial &material=GxPrimitiveMaterial::DEFAULT_2D, const GxFloat2 &uvSecond0=GxFloat2(0.f, 0.f), const GxFloat2 &uvSecond1=GxFloat2(1.f, 1.f), b32 useAutoScale=true)
	2Dテクスチャ付き回転あり四角形(Gradation)
void	draw2DRectTextureG (const GxRectF &rect, f32 positionZ, f32 z, const GxVector2 &rotateCenter, const f32 rotateRadian, const GxColor color0, const GxColor color1, const GxColor color2, const GxColor color3, const GxFloat2 &uv0, const GxFloat2 &uv1, const GxPrimitiveMaterial &material=GxPrimitiveMaterial::DEFAULT_2D, const GxFloat2 &uvSecond0=GxFloat2(0.f, 0.f), const GxFloat2 &uvSecond1=GxFloat2(1.f, 1.f), b32 useAutoScale=true)
	2Dテクスチャ付き回転あり四角形(Z指定あり、Gradation)
void	draw2DCircleF (const GxVector3 &position, f32 radius, const GxColor color, u32 divide=36, PRIMITIVE_FILL_MODE fillMode=PRIMITIVE_FILL_MODE::SOLID, const GxPrimitiveMaterial &material=GxPrimitiveMaterial::DEFAULT_2D, b32 useAutoScale=true)
	2D円(Flat)
void	draw2DCircleG (const GxVector3 &position, f32 radius, const GxColor color0, const GxColor color1, u32 divide=36, PRIMITIVE_FILL_MODE fillMode=PRIMITIVE_FILL_MODE::SOLID, const GxPrimitiveMaterial &material=GxPrimitiveMaterial::DEFAULT_2D, b32 useAutoScale=true)
	2D円(Gradation)
void	draw2DFanF (const GxVector3 &center, f32 radius, f32 degreeStart, f32 degreeDelta, const GxColor color, u32 divide=12, PRIMITIVE_FILL_MODE fillMode=PRIMITIVE_FILL_MODE::SOLID, const GxPrimitiveMaterial &material=GxPrimitiveMaterial::DEFAULT_2D, b32 useAutoScale=true)
	2D扇形(Flat)

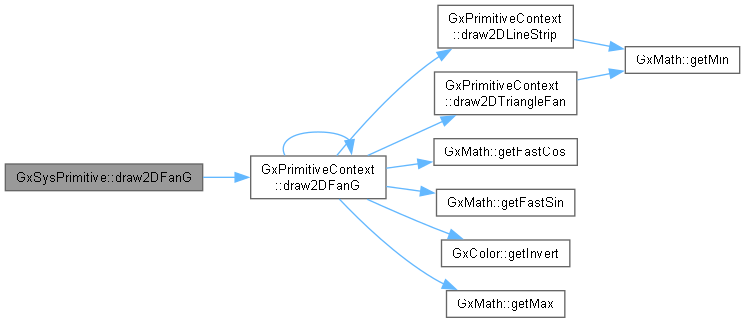

void	draw2DFanG (const GxVector3 &center, f32 radius, f32 degreeStart, f32 degreeDelta, const GxColor color0, const GxColor color1, u32 divide, PRIMITIVE_FILL_MODE fillMode=PRIMITIVE_FILL_MODE::SOLID, const GxPrimitiveMaterial &material=GxPrimitiveMaterial::DEFAULT_2D, b32 useAutoScale=true)
	2D扇形(Gradation)
void	draw2DArrowF (const GxVector3 &position0, const GxVector3 &position1, const GxColor color, PRIMITIVE_FILL_MODE fillMode=PRIMITIVE_FILL_MODE::SOLID, const GxPrimitiveMaterial &material=GxPrimitiveMaterial::DEFAULT_2D, f32 arrowRate=0.2f, f32 arrowRadius=DEGREE_TO_RADIAN(30.0f), b32 useAutoScale=true)
	2Dベクトル(Flat)
void	draw2DArrowG (const GxVector3 &position0, const GxVector3 &position1, const GxColor color0, const GxColor color1, PRIMITIVE_FILL_MODE fillMode=PRIMITIVE_FILL_MODE::SOLID, const GxPrimitiveMaterial &material=GxPrimitiveMaterial::DEFAULT_2D, f32 arrowRate=0.2f, f32 arrowRadius=DEGREE_TO_RADIAN(30.0f), b32 useAutoScale=true)
	2Dベクトル(Gradation)
GX_FORCE_INLINE void	draw2DCustom (const GxPrimitiveMaterial &material, f32 priority)
	カスタム2D描画を行う。GxPrimitiveMaterial::_handler コールバックのみ実行する
GX_FORCE_INLINE void	setProjectionMatrix2D (u32 projectionId, const GxMatrix44 &matrix)
	2D射影行列設定
GX_FORCE_INLINE const GxMatrix44 &	getProjectionMatrix2D (u32 projectionId) const
	2D射影行列取得
GX_FORCE_INLINE u32	allocateProjectionMatrix2DId (void)
	2Dプリミティブの射影行列のIDを予約する
GX_FORCE_INLINE void	freeProjectionMatrix2DId (u32 projectionId)
	2Dプリミティブの射影行列のIDを返却する
GX_FORCE_INLINE GxPrimitiveVertex *	draw3DLineList (u32 vertexCount, const GxPrimitiveMaterial &material, const GxVector3 &priorityPoint, u32 viewFlag=0xFFFFFFFF)
	3Dラインリスト
GX_FORCE_INLINE GxPrimitiveVertex *	draw3DLineStrip (u32 vertexCount, const GxPrimitiveMaterial &material, const GxVector3 &priorityPoint, u32 viewFlag=0xFFFFFFFF)
	3Dラインストリップ
GX_FORCE_INLINE GxPrimitiveVertex *	draw3DTriangleList (u32 vertexCount, const GxPrimitiveMaterial &material, const GxVector3 &priorityPoint, u32 viewFlag=0xFFFFFFFF)
	3Dトライアングルリスト
GX_FORCE_INLINE GxPrimitiveVertex *	draw3DTriangleStrip (u32 vertexCount, const GxPrimitiveMaterial &material, const GxVector3 &priorityPoint, u32 viewFlag=0xFFFFFFFF)
	3Dトライアングルストリップ
GX_FORCE_INLINE GxPrimitiveVertex *	draw3DTriangleFan (u32 vertexCount, const GxPrimitiveMaterial &material, const GxVector3 &priorityPoint, u32 viewFlag=0xFFFFFFFF)
	3Dトライアングルファン
GX_FORCE_INLINE GxPrimitiveVertex *	draw3DQuadList (u32 vertexCount, const GxPrimitiveMaterial &material, const GxVector3 &priorityPoint, u32 viewFlag=0xFFFFFFFF)
	3Dクアッドリスト
GX_FORCE_INLINE void	draw3DPoint (const GxVector3 &position, const GxColor color, const GxPrimitiveMaterial &material=GxPrimitiveMaterial::DEFAULT_3D, u32 viewFlag=0xFFFFFFFF)
	3D点
GX_FORCE_INLINE void	draw3DLineF (const GxVector3 &position0, const GxVector3 &position1, const GxColor color, const GxPrimitiveMaterial &material=GxPrimitiveMaterial::DEFAULT_3D, u32 viewFlag=0xFFFFFFFF)
	3Dライン(Flat)
GX_FORCE_INLINE void	draw3DLineG (const GxVector3 &position0, const GxVector3 &position1, const GxColor color0, const GxColor color1, const GxPrimitiveMaterial &material=GxPrimitiveMaterial::DEFAULT_3D, u32 viewFlag=0xFFFFFFFF)
	3Dライン(Gradation)
GX_FORCE_INLINE void	draw3DTriangleF (const GxVector3 &position0, const GxVector3 &position1, const GxVector3 &position2, const GxColor color, PRIMITIVE_FILL_MODE fillMode=PRIMITIVE_FILL_MODE::SOLID, const GxPrimitiveMaterial &material=GxPrimitiveMaterial::DEFAULT_3D, u32 viewFlag=0xFFFFFFFF)
	3D三角形(Flat)
GX_FORCE_INLINE void	draw3DTriangleG (const GxVector3 &position0, const GxVector3 &position1, const GxVector3 &position2, const GxColor color0, const GxColor color1, const GxColor color2, PRIMITIVE_FILL_MODE fillMode=PRIMITIVE_FILL_MODE::SOLID, const GxPrimitiveMaterial &material=GxPrimitiveMaterial::DEFAULT_3D, u32 viewFlag=0xFFFFFFFF)
	3D三角形(Gradation)
GX_FORCE_INLINE void	draw3DQuadF (const GxVector3 &position0, const GxVector3 &position1, const GxVector3 &position2, const GxVector3 &position3, const GxColor color, PRIMITIVE_FILL_MODE fillMode=PRIMITIVE_FILL_MODE::SOLID, const GxPrimitiveMaterial &material=GxPrimitiveMaterial::DEFAULT_3D, u32 viewFlag=0xFFFFFFFF)
	3D四角形(Flat)
GX_FORCE_INLINE void	draw3DQuadG (const GxVector3 &position0, const GxVector3 &position1, const GxVector3 &position2, const GxVector3 &position3, const GxColor color0, const GxColor color1, const GxColor color2, const GxColor color3, PRIMITIVE_FILL_MODE fillMode=PRIMITIVE_FILL_MODE::SOLID, const GxPrimitiveMaterial &material=GxPrimitiveMaterial::DEFAULT_3D, u32 viewFlag=0xFFFFFFFF)
	3D四角形(Gradation)
GX_FORCE_INLINE void	draw3DQuadTextureF (const GxVector3 &position0, const GxVector3 &position1, const GxVector3 &position2, const GxVector3 &position3, const GxColor color, GxFloat2 &uv0, GxFloat2 &uv1, GxFloat2 &uv2, GxFloat2 &uv3, PRIMITIVE_FILL_MODE fillMode=PRIMITIVE_FILL_MODE::SOLID, const GxPrimitiveMaterial &material=GxPrimitiveMaterial::DEFAULT_3D, u32 viewFlag=0xFFFFFFFF)
	3Dテクスチャ付き四角形(Flat)
GX_FORCE_INLINE void	draw3DQuadTextureG (const GxVector3 &position0, const GxVector3 &position1, const GxVector3 &position2, const GxVector3 &position3, const GxColor color0, const GxColor color1, const GxColor color2, const GxColor color3, GxFloat2 &uv0, GxFloat2 &uv1, GxFloat2 &uv2, GxFloat2 &uv3, PRIMITIVE_FILL_MODE fillMode=PRIMITIVE_FILL_MODE::SOLID, const GxPrimitiveMaterial &material=GxPrimitiveMaterial::DEFAULT_3D, u32 viewFlag=0xFFFFFFFF)
	3Dテクスチャ付き四角形(Gradation)
GX_FORCE_INLINE void	draw3DArrowF (const GxVector3 &position0, const GxVector3 &position1, const GxColor color, PRIMITIVE_FILL_MODE fillMode=PRIMITIVE_FILL_MODE::SOLID, const GxPrimitiveMaterial &material=GxPrimitiveMaterial::DEFAULT_3D, f32 arrowRate=0.2f, f32 arrowRadius=DEGREE_TO_RADIAN(30.0f), u32 viewFlag=0xFFFFFFFF)
	3Dベクトル(Flat)
GX_FORCE_INLINE void	draw3DArrowG (const GxVector3 &position0, const GxVector3 &position1, const GxColor color0, const GxColor color1, PRIMITIVE_FILL_MODE fillMode=PRIMITIVE_FILL_MODE::SOLID, const GxPrimitiveMaterial &material=GxPrimitiveMaterial::DEFAULT_3D, f32 arrowRate=0.2f, f32 arrowRadius=DEGREE_TO_RADIAN(30.0f), u32 viewFlag=0xFFFFFFFF)
	3Dベクトル(Gradation)
GX_FORCE_INLINE void	draw3DMatrix (const GxMatrixAffine &matrix, f32 size, PRIMITIVE_FILL_MODE fillMode=PRIMITIVE_FILL_MODE::SOLID, const GxPrimitiveMaterial &material=GxPrimitiveMaterial::DEFAULT_3D, f32 arrowRate=0.2f, f32 arrowRadius=DEGREE_TO_RADIAN(30.0f), u32 viewFlag=0xFFFFFFFF)
	3Dマトリクス
GX_FORCE_INLINE void	draw3DMatrix (const GxVector3 &position, f32 size, PRIMITIVE_FILL_MODE fillMode=PRIMITIVE_FILL_MODE::SOLID, const GxPrimitiveMaterial &material=GxPrimitiveMaterial::DEFAULT_3D, f32 arrowRate=0.2f, f32 arrowRadius=DEGREE_TO_RADIAN(30.0f), u32 viewFlag=0xFFFFFFFF)
	3Dマトリクス(ポジションのみ)
GX_FORCE_INLINE void	draw3DSphere (const GxShapeSphere &sphere, const GxColor color, u32 divide=12, PRIMITIVE_FILL_MODE fillMode=PRIMITIVE_FILL_MODE::SOLID, const GxPrimitiveMaterial &material=GxPrimitiveMaterial::DEFAULT_3D, u32 viewFlag=0xFFFFFFFF)
	3D球(形状指定)
GX_FORCE_INLINE void	draw3DSphere (const GxVector3 &center, f32 radius, const GxColor color, u32 divide=12, PRIMITIVE_FILL_MODE fillMode=PRIMITIVE_FILL_MODE::SOLID, const GxPrimitiveMaterial &material=GxPrimitiveMaterial::DEFAULT_3D, u32 viewFlag=0xFFFFFFFF)
	3D球(ポジション指定)
GX_FORCE_INLINE void	draw3DSphere (const GxMatrixAffine &coord, f32 radius, const GxColor color, u32 divide=12, PRIMITIVE_FILL_MODE fillMode=PRIMITIVE_FILL_MODE::SOLID, const GxPrimitiveMaterial &material=GxPrimitiveMaterial::DEFAULT_3D, u32 viewFlag=0xFFFFFFFF)
	3D球(行列指定)
GX_FORCE_INLINE void	draw3DBox (const GxShapeBox &box, const GxColor color, PRIMITIVE_FILL_MODE fillMode=PRIMITIVE_FILL_MODE::SOLID, const GxPrimitiveMaterial &material=GxPrimitiveMaterial::DEFAULT_3D, u32 viewFlag=0xFFFFFFFF)
	3D箱(形状指定)
GX_FORCE_INLINE void	draw3DBox (const GxMatrixAffine &coord, const GxVector3 &extent, const GxColor color, PRIMITIVE_FILL_MODE fillMode=PRIMITIVE_FILL_MODE::SOLID, const GxPrimitiveMaterial &material=GxPrimitiveMaterial::DEFAULT_3D, u32 viewFlag=0xFFFFFFFF)
	3D箱(行列指定)
GX_FORCE_INLINE void	draw3DCustom (const GxPrimitiveMaterial &material, const GxVector3 &priorityPoint, u32 viewFlag=0xFFFFFFFF)
	カスタム3D描画を行う。GxPrimitiveMaterial::_handler コールバックのみ実行する

Additional Inherited Members
Static Public Member Functions inherited from GxClassBaseRoot
static GX_FORCE_INLINE GxRtti &	__getStaticRtti (void)
	Rttiの取得
Static Public Member Functions inherited from SingletonBase< GxSysPrimitive >
static GX_FORCE_INLINE GxSysPrimitive &	getSingleton (void)
	参照を取得
static constexpr GxSysPrimitive *	getSingletonPointer (void)
	ポインタを取得
Protected Types inherited from GxSysBase
enum class	LOCK_TYPE { SEQUENTIAL_THREAD_SAFE , THREAD_SAFE }
	ロックタイプ More...
Protected Member Functions inherited from GxSysBase
void	terminateGxModules (void)
	GXモジュールの終了処理
void	lock (LOCK_TYPE type=LOCK_TYPE::THREAD_SAFE)
	クリティカルセクションに入る
void	unlock (LOCK_TYPE type=LOCK_TYPE::THREAD_SAFE)
	クリティカルセクションを出る
template<typename T >
T *	addModule (void)
	モジュールを作成
template<typename T >
void	removeModule (void)
	モジュールを削除

Detailed Description

プリミティブ描画システムクラス

Member Function Documentation

draw2DArrowF()

void GxSysPrimitive::draw2DArrowF	(	const GxVector3 &	position0,
		const GxVector3 &	position1,
		const GxColor	color,
		PRIMITIVE_FILL_MODE	fillMode = PRIMITIVE_FILL_MODE::SOLID,
		const GxPrimitiveMaterial &	material = GxPrimitiveMaterial::DEFAULT_2D,
		f32	arrowRate = 0.2f,
		f32	arrowRadius = DEGREE_TO_RADIAN(30.0f),
		b32	useAutoScale = true )

2Dベクトル(Flat)

Parameters

position0	[in] 開始座標
position1	[in] 終了座標
color	[in] 色
fillMode	[in] 塗り潰しのモード
material	[in] マテリアル
arrowRate	[in] 矢の先端の長さ
arrowRadius	[in] 矢の先端の角度
useAutoScale	[in] 自動拡縮を使うか(未使用)

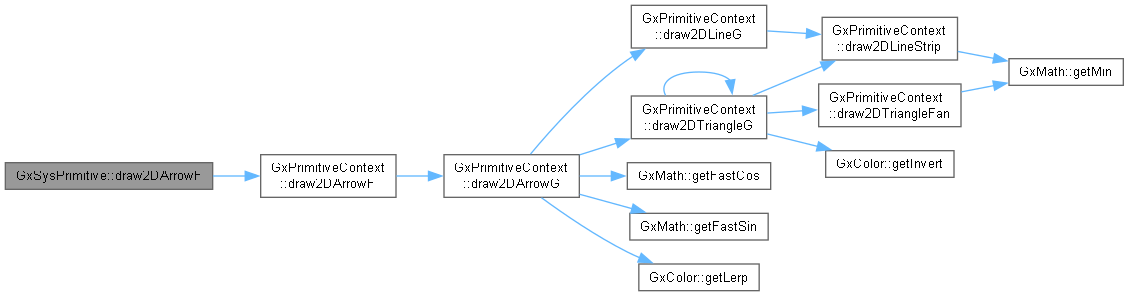

Here is the call graph for this function:

draw2DArrowG()

void GxSysPrimitive::draw2DArrowG	(	const GxVector3 &	position0,
		const GxVector3 &	position1,
		const GxColor	color0,
		const GxColor	color1,
		PRIMITIVE_FILL_MODE	fillMode = PRIMITIVE_FILL_MODE::SOLID,
		const GxPrimitiveMaterial &	material = GxPrimitiveMaterial::DEFAULT_2D,
		f32	arrowRate = 0.2f,
		f32	arrowRadius = DEGREE_TO_RADIAN(30.0f),
		b32	useAutoScale = true )

2Dベクトル(Gradation)

Parameters

position0	[in] 開始座標
position1	[in] 終了座標
color0	[in] 開始色
color1	[in] 終了色
fillMode	[in] 塗り潰しのモード
material	[in] マテリアル
arrowRate	[in] 矢の先端の長さ
arrowRadius	[in] 矢の先端の角度
useAutoScale	[in] 自動拡縮を使うか(未使用)

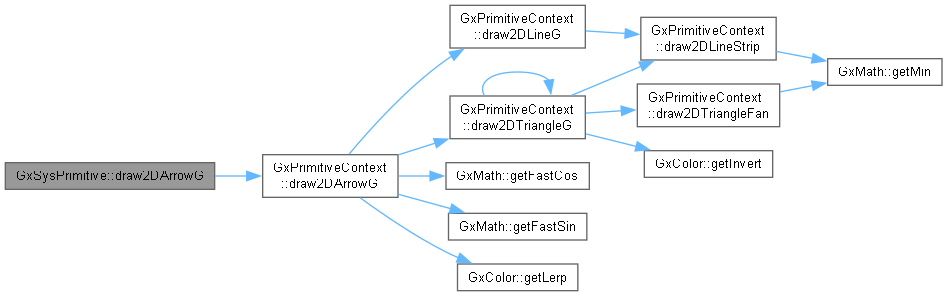

Here is the call graph for this function:

draw2DCircleF()

void GxSysPrimitive::draw2DCircleF	(	const GxVector3 &	position,
		f32	radius,
		const GxColor	color,
		u32	divide = 36,
		PRIMITIVE_FILL_MODE	fillMode = PRIMITIVE_FILL_MODE::SOLID,
		const GxPrimitiveMaterial &	material = GxPrimitiveMaterial::DEFAULT_2D,
		b32	useAutoScale = true )

2D円(Flat)

Parameters

position	[in] 座標
radius	[in] 半径
color	[in] 色
divide	[in] ポリゴン分割数
fillMode	[in] 塗り潰しのモード
material	[in] マテリアル
useAutoScale	[in] 自動拡縮を使うか(未使用)

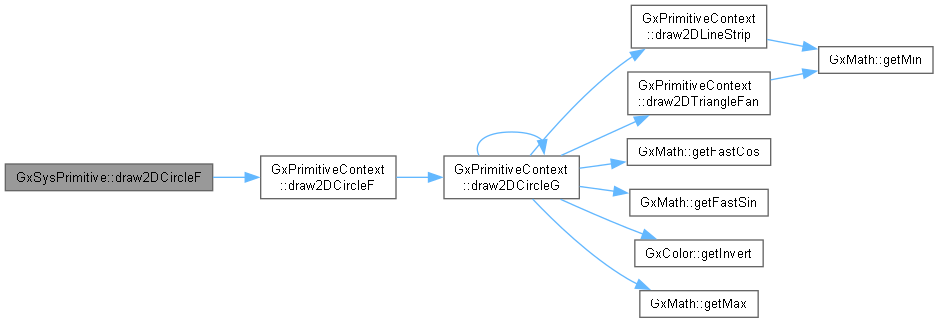

Here is the call graph for this function:

Here is the caller graph for this function:

draw2DCircleG()

void GxSysPrimitive::draw2DCircleG	(	const GxVector3 &	position,
		f32	radius,
		const GxColor	color0,
		const GxColor	color1,
		u32	divide = 36,
		PRIMITIVE_FILL_MODE	fillMode = PRIMITIVE_FILL_MODE::SOLID,
		const GxPrimitiveMaterial &	material = GxPrimitiveMaterial::DEFAULT_2D,
		b32	useAutoScale = true )

2D円(Gradation)

Parameters

position	[in] 座標
radius	[in] 半径
color0	[in] 中心色
color1	[in] 円周色
divide	[in] ポリゴン分割数
fillMode	[in] 塗り潰しのモード
material	[in] マテリアル
useAutoScale	[in] 自動拡縮を使うか(未使用)

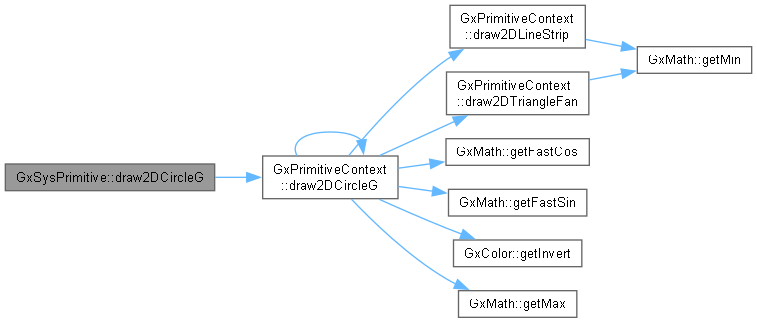

Here is the call graph for this function:

draw2DFanF()

void GxSysPrimitive::draw2DFanF	(	const GxVector3 &	center,
		f32	radius,
		f32	degreeStart,
		f32	degreeDelta,
		const GxColor	color,
		u32	divide = 12,
		PRIMITIVE_FILL_MODE	fillMode = PRIMITIVE_FILL_MODE::SOLID,
		const GxPrimitiveMaterial &	material = GxPrimitiveMaterial::DEFAULT_2D,
		b32	useAutoScale = true )

2D扇形(Flat)

Parameters

center	[in] 中心座標
radius	[in] 半径
degreeStart	[in] 開始角度[degree]時計の３時を０として、反時計を正とする
degreeDelta	[in] 描画する角度量[degree]
color	[in] 色
divide	[in] ポリゴン分割数
fillMode	[in] 塗り潰しのモード
material	[in] マテリアル
useAutoScale	[in] 自動拡縮を使うか(未使用)

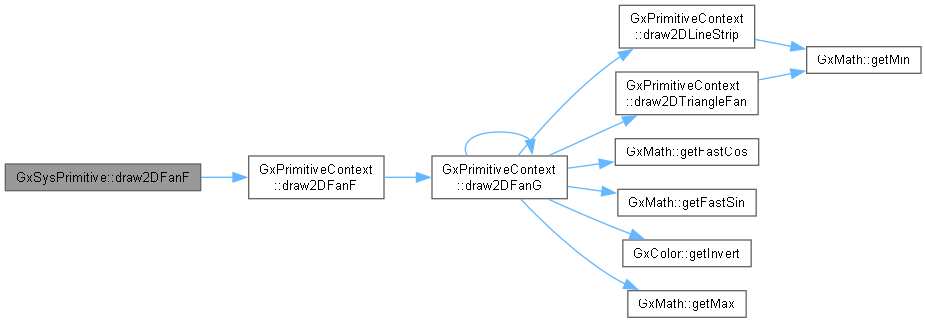

Here is the call graph for this function:

draw2DFanG()

void GxSysPrimitive::draw2DFanG	(	const GxVector3 &	center,
		f32	radius,
		f32	degreeStart,
		f32	degreeDelta,
		const GxColor	color0,
		const GxColor	color1,
		u32	divide,
		PRIMITIVE_FILL_MODE	fillMode = PRIMITIVE_FILL_MODE::SOLID,
		const GxPrimitiveMaterial &	material = GxPrimitiveMaterial::DEFAULT_2D,
		b32	useAutoScale = true )

2D扇形(Gradation)

Parameters

center	[in] 中心座標
radius	[in] 半径
degreeStart	[in] 開始角度[degree]時計の３時を０として、反時計を正とする
degreeDelta	[in] 描画する角度量[degree]
color0	[in] 中心色
color1	[in] 円周色
divide	[in] ポリゴン分割数
fillMode	[in] 塗り潰しのモード
material	[in] マテリアル
useAutoScale	[in] 自動拡縮を使うか(未使用)

Here is the call graph for this function:

draw2DLineF()

void GxSysPrimitive::draw2DLineF	(	const GxVector3 &	position0,
		const GxVector3 &	position1,
		const GxColor	color,
		const GxPrimitiveMaterial &	material = GxPrimitiveMaterial::DEFAULT_2D,
		b32	useAutoScale = true )

2Dライン(Flat)

Parameters

position0	[in] 始点座標
position1	[in] 終点座標
color	[in] 色
material	[in] マテリアル
useAutoScale	[in] 自動拡縮を使うか(未使用)

Here is the call graph for this function:

Here is the caller graph for this function:

draw2DLineG()

void GxSysPrimitive::draw2DLineG	(	const GxVector3 &	position0,
		const GxVector3 &	position1,
		const GxColor	color0,
		const GxColor	color1,
		const GxPrimitiveMaterial &	material = GxPrimitiveMaterial::DEFAULT_2D,
		b32	useAutoScale = true )

2Dライン(Gradation)

Parameters

position0	[in] 始点座標
position1	[in] 終点座標
color0	[in] 始点色
color1	[in] 終点色
material	[in] マテリアル
useAutoScale	[in] 自動拡縮を使うか(未使用)

Here is the call graph for this function:

draw2DPoint()

void GxSysPrimitive::draw2DPoint	(	const GxVector3 &	position,
		const GxColor	color,
		const GxPrimitiveMaterial &	material = GxPrimitiveMaterial::DEFAULT_2D,
		b32	useAutoScale = true )

2D点

Parameters

position	[in] 座標
color	[in] 色
material	[in] マテリアル
useAutoScale	[in] 自動拡縮を使うか(未使用)

Here is the call graph for this function:

draw2DPolyLineF()

void GxSysPrimitive::draw2DPolyLineF	(	const GxVector3 &	position0,
		const GxVector3 &	position1,
		u32	width,
		const GxColor	color,
		PRIMITIVE_FILL_MODE	fillMode = PRIMITIVE_FILL_MODE::SOLID,
		const GxPrimitiveMaterial &	material = GxPrimitiveMaterial::DEFAULT_2D,
		b32	useAutoScale = true )

2Dポリライン(Flat)

Parameters

position0	[in] 始点座標
position1	[in] 終点座標
width	[in] ラインの幅
color	[in] 色
fillMode	[in] 塗り潰しのモード
material	[in] マテリアル
useAutoScale	[in] 自動拡縮を使うか(未使用)

Here is the call graph for this function:

draw2DPolyLineG()

void GxSysPrimitive::draw2DPolyLineG	(	const GxVector3 &	position0,
		const GxVector3 &	position1,
		u32	width,
		const GxColor	color0,
		const GxColor	color1,
		PRIMITIVE_FILL_MODE	fillMode = PRIMITIVE_FILL_MODE::SOLID,
		const GxPrimitiveMaterial &	material = GxPrimitiveMaterial::DEFAULT_2D,
		b32	useAutoScale = true )

2Dポリライン(Gradation)

Parameters

position0	[in] 始点座標
position1	[in] 終点座標
width	[in] ラインの幅
color0	[in] 始点色
color1	[in] 終点色
fillMode	[in] 塗り潰しのモード
material	[in] マテリアル
useAutoScale	[in] 自動拡縮を使うか(未使用)

Here is the call graph for this function:

draw2DRectF() [1/3]

void GxSysPrimitive::draw2DRectF	(	const GxRectF &	rect,
		f32	positionZ,
		f32	z,
		const GxColor	color,
		PRIMITIVE_FILL_MODE	fillMode = PRIMITIVE_FILL_MODE::SOLID,
		const GxPrimitiveMaterial &	material = GxPrimitiveMaterial::DEFAULT_2D,
		b32	useAutoScale = true )

2D四角形(Z指定あり、Flat)

Parameters

rect	[in] 矩形
positionZ	[in] 深度(Z書き込み値)
z	[in] 深度(ソート用深度)
color	[in] 色
fillMode	[in] 塗り潰しのモード
material	[in] マテリアル
useAutoScale	[in] 自動拡縮を使うか(未使用)

Here is the call graph for this function:

draw2DRectF() [2/3]

void GxSysPrimitive::draw2DRectF	(	const GxRectF &	rect,
		f32	z,
		const GxColor	color,
		PRIMITIVE_FILL_MODE	fillMode = PRIMITIVE_FILL_MODE::SOLID,
		const GxPrimitiveMaterial &	material = GxPrimitiveMaterial::DEFAULT_2D,
		b32	useAutoScale = true )

2D四角形(Flat)

Parameters

rect	[in] 矩形
z	[in] 深度
color	[in] 色
fillMode	[in] 塗り潰しのモード
material	[in] マテリアル
useAutoScale	[in] 自動拡縮を使うか(未使用)

Here is the call graph for this function:

Here is the caller graph for this function:

draw2DRectF() [3/3]

void GxSysPrimitive::draw2DRectF	(	const GxRectF &	rect,
		f32	z,
		const GxVector2 &	rotateCenter,
		const f32	rotateRadian,
		const GxColor	color,
		PRIMITIVE_FILL_MODE	fillMode = PRIMITIVE_FILL_MODE::SOLID,
		const GxPrimitiveMaterial &	material = GxPrimitiveMaterial::DEFAULT_2D,
		b32	useAutoScale = true )

2D回転あり四角形(Flat)

Parameters

rect	[in] 矩形
z	[in] 深度
rotateCenter	[in] 回転の中心
rotateRadian	[in] 回転角
color	[in] 色
fillMode	[in] 塗り潰しのモード
material	[in] マテリアル
useAutoScale	[in] 自動拡縮を使うか(未使用)

Here is the call graph for this function:

draw2DRectG() [1/2]

void GxSysPrimitive::draw2DRectG	(	const GxRectF &	rect,
		f32	z,
		const GxColor	color0,
		const GxColor	color1,
		const GxColor	color2,
		const GxColor	color3,
		PRIMITIVE_FILL_MODE	fillMode = PRIMITIVE_FILL_MODE::SOLID,
		const GxPrimitiveMaterial &	material = GxPrimitiveMaterial::DEFAULT_2D,
		b32	useAutoScale = true )

2D四角形(Gradation)

Parameters

rect	[in] 矩形
z	[in] 深度
color0	[in] 色0
color1	[in] 色1
color2	[in] 色2
color3	[in] 色3
fillMode	[in] 塗り潰しのモード
material	[in] マテリアル
useAutoScale	[in] 自動拡縮を使うか(未使用)

Here is the call graph for this function:

draw2DRectG() [2/2]

void GxSysPrimitive::draw2DRectG	(	const GxRectF &	rect,
		f32	z,
		const GxVector2 &	rotateCenter,
		const f32	rotateRadian,
		const GxColor	color0,
		const GxColor	color1,
		const GxColor	color2,
		const GxColor	color3,
		PRIMITIVE_FILL_MODE	fillMode = PRIMITIVE_FILL_MODE::SOLID,
		const GxPrimitiveMaterial &	material = GxPrimitiveMaterial::DEFAULT_2D,
		b32	useAutoScale = true )

2D回転あり四角形(Gradation)

Parameters

rect	[in] 矩形
z	[in] 深度
rotateCenter	[in] 回転の中心
rotateRadian	[in] 回転角
color0	[in] 色0
color1	[in] 色1
color2	[in] 色2
color3	[in] 色3
fillMode	[in] 塗り潰しのモード
material	[in] マテリアル
useAutoScale	[in] 自動拡縮を使うか(未使用)

Here is the call graph for this function:

draw2DRectTextureF() [1/4]

void GxSysPrimitive::draw2DRectTextureF	(	const GxRectF &	rect,
		f32	positionZ,
		f32	z,
		const GxColor	color,
		const GxFloat2 &	uv0,
		const GxFloat2 &	uv1,
		const GxPrimitiveMaterial &	material = GxPrimitiveMaterial::DEFAULT_2D,
		const GxFloat2 &	uvSecond0 = GxFloat2(0.f, 0.f),
		const GxFloat2 &	uvSecond1 = GxFloat2(1.f, 1.f),
		b32	useAutoScale = true )

2Dテクスチャ付き四角形(Z値指定あり、Flat)

Parameters

rect	[in] 矩形
positionZ	[in] 深度(Z書き込み値)
z	[in] 深度(ソート用深度)
color	[in] 色
uv0	[in] 左上UV値
uv1	[in] 右下UV値
material	[in] マテリアル
uvSecond0	[in] 第2左上UV値
uvSecond1	[in] 第2右下UV値
useAutoScale	[in] 自動拡縮を使うか(未使用)

Here is the call graph for this function:

draw2DRectTextureF() [2/4]

void GxSysPrimitive::draw2DRectTextureF	(	const GxRectF &	rect,
		f32	positionZ,
		f32	z,
		const GxVector2 &	rotateCenter,
		const f32	rotateRadian,
		const GxColor	color,
		const GxFloat2 &	uv0,
		const GxFloat2 &	uv1,
		const GxPrimitiveMaterial &	material = GxPrimitiveMaterial::DEFAULT_2D,
		const GxFloat2 &	uvSecond0 = GxFloat2(0.f, 0.f),
		const GxFloat2 &	uvSecond1 = GxFloat2(1.f, 1.f),
		b32	useAutoScale = true )

2Dテクスチャ付き回転あり四角形(Z値指定あり、Flat)

Parameters

rect	[in] 矩形
positionZ	[in] 深度(Z書き込み値)
z	[in] 深度(ソート用深度)
rotateCenter	[in] 回転の中心
rotateRadian	[in] 回転角
color	[in] 色
uv0	[in] 左上UV値
uv1	[in] 右下UV値
material	[in] マテリアル
uvSecond0	[in] 第2左上UV値
uvSecond1	[in] 第2右下UV値
useAutoScale	[in] 自動拡縮を使うか(未使用)

Here is the call graph for this function:

draw2DRectTextureF() [3/4]

void GxSysPrimitive::draw2DRectTextureF	(	const GxRectF &	rect,
		f32	z,
		const GxColor	color,
		const GxFloat2 &	uv0,
		const GxFloat2 &	uv1,
		const GxPrimitiveMaterial &	material = GxPrimitiveMaterial::DEFAULT_2D,
		const GxFloat2 &	uvSecond0 = GxFloat2(0.f, 0.f),
		const GxFloat2 &	uvSecond1 = GxFloat2(1.f, 1.f),
		b32	useAutoScale = true )

2Dテクスチャ付き四角形(Flat)

Parameters

rect	[in] 矩形
z	[in] 深度
color	[in] 色
uv0	[in] 左上UV値
uv1	[in] 右下UV値
material	[in] マテリアル
uvSecond0	[in] 第2左上UV値
uvSecond1	[in] 第2右下UV値
useAutoScale	[in] 自動拡縮を使うか(未使用)

Here is the call graph for this function:

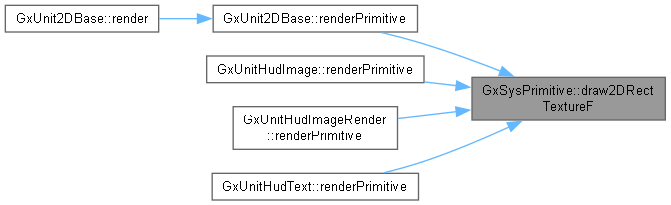

Here is the caller graph for this function:

draw2DRectTextureF() [4/4]

void GxSysPrimitive::draw2DRectTextureF	(	const GxRectF &	rect,
		f32	z,
		const GxVector2 &	rotateCenter,
		const f32	rotateRadian,
		const GxColor	color,
		const GxFloat2 &	uv0,
		const GxFloat2 &	uv1,
		const GxPrimitiveMaterial &	material = GxPrimitiveMaterial::DEFAULT_2D,
		const GxFloat2 &	uvSecond0 = GxFloat2(0.f, 0.f),
		const GxFloat2 &	uvSecond1 = GxFloat2(1.f, 1.f),
		b32	useAutoScale = true )

2Dテクスチャ付き回転あり四角形(Flat)

Parameters

rect	[in] 矩形
z	[in] 深度
rotateCenter	[in] 回転の中心
rotateRadian	[in] 回転角
color	[in] 色
uv0	[in] 左上UV値
uv1	[in] 右下UV値
material	[in] マテリアル
uvSecond0	[in] 第2左上UV値
uvSecond1	[in] 第2右下UV値
useAutoScale	[in] 自動拡縮を使うか(未使用)

Here is the call graph for this function:

draw2DRectTextureG() [1/3]

void GxSysPrimitive::draw2DRectTextureG	(	const GxRectF &	rect,
		f32	positionZ,
		f32	z,
		const GxColor	color0,
		const GxColor	color1,
		const GxColor	color2,
		const GxColor	color3,
		const GxFloat2 &	uv0,
		const GxFloat2 &	uv1,
		const GxPrimitiveMaterial &	material = GxPrimitiveMaterial::DEFAULT_2D,
		const GxFloat2 &	uvSecond0 = GxFloat2(0.f, 0.f),
		const GxFloat2 &	uvSecond1 = GxFloat2(1.f, 1.f),
		b32	useAutoScale = true )

2Dテクスチャ付き四角形(Z指定あり、Gradation)

Parameters

rect	[in] 矩形
positionZ	[in] 深度(Z書き込み値)
z	[in] 深度(ソート用深度)
color0	[in] 色0
color1	[in] 色1
color2	[in] 色2
color3	[in] 色3
uv0	[in] 左上UV値
uv1	[in] 右下UV値
material	[in] マテリアル
uvSecond0	[in] 第2左上UV値
uvSecond1	[in] 第2右下UV値
useAutoScale	[in] 自動拡縮を使うか(未使用)

Here is the call graph for this function:

draw2DRectTextureG() [2/3]

void GxSysPrimitive::draw2DRectTextureG	(	const GxRectF &	rect,
		f32	z,
		const GxColor	color0,
		const GxColor	color1,
		const GxColor	color2,
		const GxColor	color3,
		const GxFloat2 &	uv0,
		const GxFloat2 &	uv1,
		const GxPrimitiveMaterial &	material = GxPrimitiveMaterial::DEFAULT_2D,
		const GxFloat2 &	uvSecond0 = GxFloat2(0.f, 0.f),
		const GxFloat2 &	uvSecond1 = GxFloat2(1.f, 1.f),
		b32	useAutoScale = true )

2Dテクスチャ付き四角形(Gradation)

Parameters

rect	[in] 矩形
z	[in] 深度(ソート用深度)
color0	[in] 色0
color1	[in] 色1
color2	[in] 色2
color3	[in] 色3
uv0	[in] 左上UV値
uv1	[in] 右下UV値
material	[in] マテリアル
uvSecond0	[in] 第2左上UV値
uvSecond1	[in] 第2右下UV値
useAutoScale	[in] 自動拡縮を使うか(未使用)

Here is the call graph for this function:

draw2DRectTextureG() [3/3]

void GxSysPrimitive::draw2DRectTextureG	(	const GxRectF &	rect,
		f32	z,
		const GxVector2 &	rotateCenter,
		const f32	rotateRadian,
		const GxColor	color0,
		const GxColor	color1,
		const GxColor	color2,
		const GxColor	color3,
		const GxFloat2 &	uv0,
		const GxFloat2 &	uv1,
		const GxPrimitiveMaterial &	material = GxPrimitiveMaterial::DEFAULT_2D,
		const GxFloat2 &	uvSecond0 = GxFloat2(0.f, 0.f),
		const GxFloat2 &	uvSecond1 = GxFloat2(1.f, 1.f),
		b32	useAutoScale = true )

2Dテクスチャ付き回転あり四角形(Gradation)

Parameters

rect	[in] 矩形
z	[in] 深度
rotateCenter	[in] 回転の中心
rotateRadian	[in] 回転角
color0	[in] 色0
color1	[in] 色1
color2	[in] 色2
color3	[in] 色3
uv0	[in] 左上UV値
uv1	[in] 右下UV値
material	[in] マテリアル
uvSecond0	[in] 第2左上UV値
uvSecond1	[in] 第2右下UV値
useAutoScale	[in] 自動拡縮を使うか(未使用)

Here is the call graph for this function:

draw2DTriangleF()

void GxSysPrimitive::draw2DTriangleF	(	const GxVector3 &	position0,
		const GxVector3 &	position1,
		const GxVector3 &	position2,
		const GxColor	color,
		PRIMITIVE_FILL_MODE	fillMode = PRIMITIVE_FILL_MODE::SOLID,
		const GxPrimitiveMaterial &	material = GxPrimitiveMaterial::DEFAULT_2D,
		b32	useAutoScale = true )

2D三角形(Flat)

Parameters

position0	[in] 座標0
position1	[in] 座標1
position2	[in] 座標2
color	[in] 色
fillMode	[in] 塗り潰しのモード
material	[in] マテリアル
useAutoScale	[in] 自動拡縮を使うか(未使用)

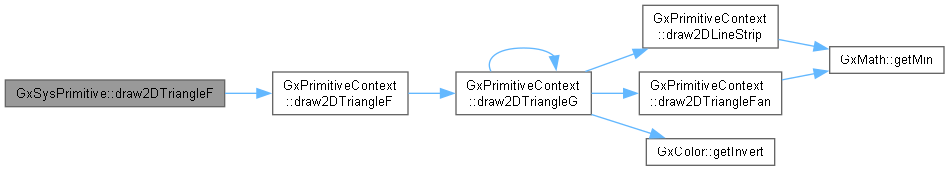

Here is the call graph for this function:

draw2DTriangleG()

void GxSysPrimitive::draw2DTriangleG	(	const GxVector3 &	position0,
		const GxVector3 &	position1,
		const GxVector3 &	position2,
		const GxColor	color0,
		const GxColor	color1,
		const GxColor	color2,
		PRIMITIVE_FILL_MODE	fillMode = PRIMITIVE_FILL_MODE::SOLID,
		const GxPrimitiveMaterial &	material = GxPrimitiveMaterial::DEFAULT_2D,
		b32	useAutoScale = true )

2D三角形(Gradation)

Parameters

position0	[in] 座標0
position1	[in] 座標1
position2	[in] 座標2
color0	[in] 色0
color1	[in] 色1
color2	[in] 色2
fillMode	[in] 塗り潰しのモード
material	[in] マテリアル
useAutoScale	[in] 自動拡縮を使うか(未使用)

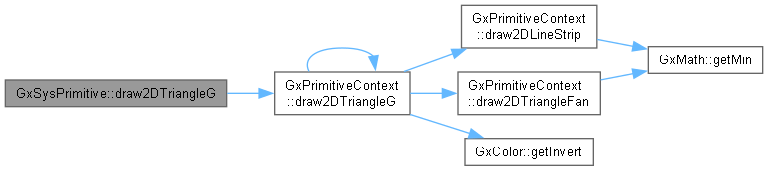

Here is the call graph for this function:

getResolution2D()

GxSize GxSysPrimitive::getResolution2D

(

void

)

const

2D描画解像度の取得

Returns

描画解像度

Here is the call graph for this function:

getSafetyArea()

GxRect GxSysPrimitive::getSafetyArea

(

void

)

const

2Dセーフティエリアの取得

Returns

セーフティエリアの矩形

Here is the call graph for this function:

initialize()

b32 GxSysPrimitive::initialize ( const GxClassBase * pInitialInformation )

overridevirtual

初期化

Parameters

pInitialInformation

[in] 初期化構造体

Returns

成功ならtrue

Reimplemented from GxSysBase.

Here is the call graph for this function:

Here is the caller graph for this function:

initializeThreadLocalStorage()

b32 GxSysPrimitive::initializeThreadLocalStorage ( u32 workerThreadIndex )

virtual

スレッドローカルストレージ初期化関数

Parameters

workerThreadIndex

[in] ワーカースレッドインデックス

Returns

成功ならtrue

Here is the call graph for this function:

Here is the caller graph for this function:

terminate()

void GxSysPrimitive::terminate ( void )

overridevirtual

終了処理

Reimplemented from GxSysBase.

Here is the call graph for this function:

Here is the caller graph for this function:

transformWorldTo2D()

GxVector2 GxSysPrimitive::transformWorldTo2D

(

const GxVector3 &

worldPosition

)

const

ワールド座標→2D座標

Parameters

worldPosition

[in] ワールド座標

Returns

2D座標

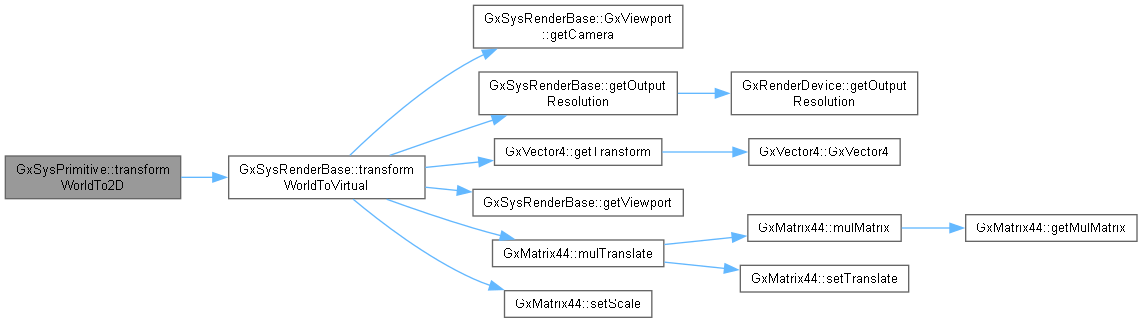

Here is the call graph for this function:

---

The documentation for this class was generated from the following files:

• C:/Users/t-arai/Documents/workspace/orochi_package_windows/middleware/GxCore/src/GxSysPrimitive.h
• C:/Users/t-arai/Documents/workspace/orochi_package_windows/middleware/GxCore/src/GxSysPrimitive.cpp
