プリミティブの並列発行を管理します。 More...

#include <GxPrimitiveContext.h>

Inheritance diagram for GxPrimitiveContext:

[legend]

Collaboration diagram for GxPrimitiveContext:

[legend]

Friends
定義
class	GxPrimitiveManager

初期化
	GxPrimitiveContext (void)
	デフォルトコンストラクタ

操作
void	setScreenSize (const GxSize &size, f32 priority)
	スクリーンサイズを設定

void	setScissorRect (const GxRect &rect, f32 priority, u32 viewFlag=0xFFFFFFFF)
	シザリング矩形の設定

void	setRenderTarget (GxRenderTexture *pRenderTarget, f32 priority, u32 viewFlag=0xFFFFFFFF)
	レンダーターゲットの設定

void	copyRenderTargetToTexture (u32 index, GxRenderTexture pTexture, u32 dstMipLevel, const GxRect pSrcRect, const GxPoint2 *pDstPoint, f32 priority, u32 viewFlag=0xFFFFFFFF)
	レンダーターゲットをテクスチャにコピー

void	clear (const GxColor &clearColor, f32 priority, u32 viewFlag=0xFFFFFFFF)
	画面クリア

GxPrimitiveVertex *	draw2DLineList (u32 vertexCount, const GxPrimitiveMaterial &material, f32 priority)
	2Dラインリスト

GxPrimitiveVertex *	draw2DLineStrip (u32 vertexCount, const GxPrimitiveMaterial &material, f32 priority)
	2Dラインストリップ

GxPrimitiveVertex *	draw2DTriangleList (u32 vertexCount, const GxPrimitiveMaterial &material, f32 priority)
	2Dトライアングルリスト

GxPrimitiveVertex *	draw2DTriangleStrip (u32 vertexCount, const GxPrimitiveMaterial &material, f32 priority)
	2Dトライアングルストリップ

GxPrimitiveVertex *	draw2DTriangleFan (u32 vertexCount, const GxPrimitiveMaterial &material, f32 priority)
	2Dトライアングルファン

GxPrimitiveVertex *	draw2DQuadList (u32 vertexCount, const GxPrimitiveMaterial &material, f32 priority)
	2Dクアッドリスト

GX_FORCE_INLINE void	draw2DPoint (const GxVector3 &position, const GxColor color, const GxPrimitiveMaterial &material)
	2D点

GX_FORCE_INLINE void	draw2DLineF (const GxVector3 &position0, const GxVector3 &position1, const GxColor color, const GxPrimitiveMaterial &material)
	2Dライン(Flat)

GX_FORCE_INLINE void	draw2DLineG (const GxVector3 &position0, const GxVector3 &position1, const GxColor color0, const GxColor color1, const GxPrimitiveMaterial &material)
	2Dライン(Gradation)

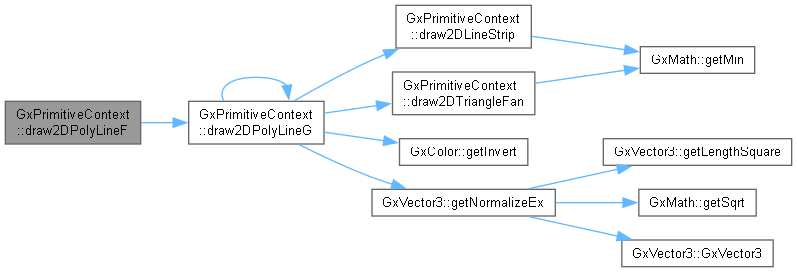

GX_FORCE_INLINE void	draw2DPolyLineF (const GxVector3 &position0, const GxVector3 &position1, u32 width, const GxColor color, PRIMITIVE_FILL_MODE fillMode, const GxPrimitiveMaterial &material)
	2Dポリライン(Flat)

void	draw2DPolyLineG (const GxVector3 &position0, const GxVector3 &position1, u32 width, const GxColor color0, const GxColor color1, PRIMITIVE_FILL_MODE fillMode, const GxPrimitiveMaterial &material)
	2Dポリライン(Gradation)

GX_FORCE_INLINE void	draw2DTriangleF (const GxVector3 &position0, const GxVector3 &position1, const GxVector3 &position2, const GxColor color, PRIMITIVE_FILL_MODE fillMode, const GxPrimitiveMaterial &material)
	2D三角形(Flat)

void	draw2DTriangleG (const GxVector3 &position0, const GxVector3 &position1, const GxVector3 &position2, const GxColor color0, const GxColor color1, const GxColor color2, PRIMITIVE_FILL_MODE fillMode, const GxPrimitiveMaterial &material)
	2D三角形(Gradation)

GX_FORCE_INLINE void	draw2DRectF (const GxRectF &rect, f32 z, const GxColor color, PRIMITIVE_FILL_MODE fillMode, const GxPrimitiveMaterial &material)
	2D四角形(Flat)

GX_FORCE_INLINE void	draw2DRectF (const GxRectF &rect, f32 posZ, f32 z, const GxColor color, PRIMITIVE_FILL_MODE fillMode, const GxPrimitiveMaterial &material)
	2D四角形(z値指定、Flat)

void	draw2DRectG (const GxRectF &rect, f32 z, const GxColor color0, const GxColor color1, const GxColor color2, const GxColor color3, PRIMITIVE_FILL_MODE fillMode, const GxPrimitiveMaterial &material)
	2D四角形(Gradation)

void	draw2DRectG (const GxRectF &rect, f32 posZ, f32 z, const GxColor color0, const GxColor color1, const GxColor color2, const GxColor color3, PRIMITIVE_FILL_MODE fillMode, const GxPrimitiveMaterial &material)
	2D四角形(z値指定、Gradation)

GX_FORCE_INLINE void	draw2DRectTextureF (const GxRectF &rect, f32 z, const GxColor color, const GxFloat2 &uv0, const GxFloat2 &uv1, const GxPrimitiveMaterial &material, const GxFloat2 &uvSecond0=GxFloat2(0.f, 0.f), const GxFloat2 &uvSecond1=GxFloat2(1.f, 1.f))
	2Dテクスチャ付き四角形(Flat)

GX_FORCE_INLINE void	draw2DRectTextureG (const GxRectF &rect, f32 z, const GxColor color0, const GxColor color1, const GxColor color2, const GxColor color3, const GxFloat2 &uv0, const GxFloat2 &uv1, const GxPrimitiveMaterial &material, const GxFloat2 &uvSecond0=GxFloat2(0.f, 0.f), const GxFloat2 &uvSecond1=GxFloat2(1.f, 1.f))
	2Dテクスチャ付き四角形(Gradation)

GX_FORCE_INLINE void	draw2DRectTextureG (const GxRectF &rect, f32 posZ, f32 z, const GxColor color0, const GxColor color1, const GxColor color2, const GxColor color3, const GxFloat2 &uv0, const GxFloat2 &uv1, const GxPrimitiveMaterial &material, const GxFloat2 &uvSecond0=GxFloat2(0.f, 0.f), const GxFloat2 &uvSecond1=GxFloat2(1.f, 1.f))
	2Dテクスチャ付き四角形(Z値指定、Gradation)

GX_FORCE_INLINE void	draw2DRectF (const GxRectF &rect, f32 z, const GxVector2 &rotateCenter, const f32 rotateRadian, const GxColor color, PRIMITIVE_FILL_MODE fillMode, const GxPrimitiveMaterial &material)
	2D回転あり四角形(Flat)

void	draw2DRectG (const GxRectF &rect, f32 z, const GxVector2 &rotateCenter, const f32 rotateRadian, const GxColor color0, const GxColor color1, const GxColor color2, const GxColor color3, PRIMITIVE_FILL_MODE fillMode, const GxPrimitiveMaterial &material)
	2D回転あり四角形(Gradation)

GX_FORCE_INLINE void	draw2DRectTextureF (const GxRectF &rect, f32 z, const GxVector2 &rotateCenter, const f32 rotateRadian, const GxColor color, const GxFloat2 &uv0, const GxFloat2 &uv1, const GxPrimitiveMaterial &material, const GxFloat2 &uvSecond0=GxFloat2(0.f, 0.f), const GxFloat2 &uvSecond1=GxFloat2(1.f, 1.f))
	2Dテクスチャ付き回転あり四角形(Flat)

GX_FORCE_INLINE void	draw2DRectTextureG (const GxRectF &rect, f32 z, const GxVector2 &rotateCenter, const f32 rotateRadian, const GxColor color0, const GxColor color1, const GxColor color2, const GxColor color3, const GxFloat2 &uv0, const GxFloat2 &uv1, const GxPrimitiveMaterial &material, const GxFloat2 &uvSecond0=GxFloat2(0.f, 0.f), const GxFloat2 &uvSecond1=GxFloat2(1.f, 1.f))
	2Dテクスチャ付き回転あり四角形(Gradation)

GX_FORCE_INLINE void	draw2DRectTextureG (const GxRectF &rect, f32 posZ, f32 z, const GxVector2 &rotateCenter, const f32 rotateRadian, const GxColor color0, const GxColor color1, const GxColor color2, const GxColor color3, const GxFloat2 &uv0, const GxFloat2 &uv1, const GxPrimitiveMaterial &material, const GxFloat2 &uvSecond0=GxFloat2(0.f, 0.f), const GxFloat2 &uvSecond1=GxFloat2(1.f, 1.f))
	2Dテクスチャ付き回転あり四角形(Z値指定、Gradation)

GX_FORCE_INLINE void	draw2DCircleF (const GxVector3 &position, f32 radius, const GxColor color, u32 divide, PRIMITIVE_FILL_MODE fillMode, const GxPrimitiveMaterial &material)
	2D円(Flat)

void	draw2DCircleG (const GxVector3 &position, f32 radius, const GxColor color0, const GxColor color1, u32 divide, PRIMITIVE_FILL_MODE fillMode, const GxPrimitiveMaterial &material)
	2D円(Gradation)

GX_FORCE_INLINE void	draw2DFanF (const GxVector3 &position, f32 radius, f32 startRadian, f32 deltaRadian, const GxColor color, u32 divide, PRIMITIVE_FILL_MODE fillMode, const GxPrimitiveMaterial &material)
	2D扇形(Flat)

void	draw2DFanG (const GxVector3 &position, f32 radius, f32 startRadian, f32 deltaRadian, const GxColor color0, const GxColor color1, u32 divide, PRIMITIVE_FILL_MODE fillMode, const GxPrimitiveMaterial &material)
	2D扇形(Gradation)

GX_FORCE_INLINE void	draw2DArrowF (const GxVector3 &position0, const GxVector3 &position1, const GxColor color, PRIMITIVE_FILL_MODE fillMode, const GxPrimitiveMaterial &material, f32 arrowRate=0.2f, f32 arrowRadius=DEGREE_TO_RADIAN(30.0f))
	2Dベクトル(Flat)

GX_FORCE_INLINE void	draw2DArrowG (const GxVector3 &position0, const GxVector3 &position1, const GxColor color0, const GxColor color1, PRIMITIVE_FILL_MODE fillMode, const GxPrimitiveMaterial &material, f32 arrowRate=0.2f, f32 arrowRadius=DEGREE_TO_RADIAN(30.0f))
	2Dベクトル(Gradation)

void	draw2DCustom (const GxPrimitiveMaterial &material, f32 priority)
	カスタム2D描画を行う。GxPrimitiveMaterial::_handler コールバックのみ実行する

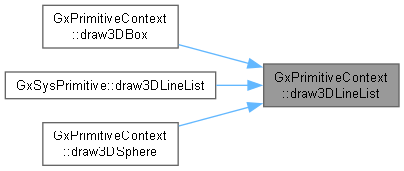

GxPrimitiveVertex *	draw3DLineList (u32 vertexCount, const GxPrimitiveMaterial &material, const GxVector3 &priorityPoint, u32 viewFlag=0xFFFFFFFF)
	3Dラインリスト

GxPrimitiveVertex *	draw3DLineStrip (u32 vertexCount, const GxPrimitiveMaterial &material, const GxVector3 &priorityPoint, u32 viewFlag=0xFFFFFFFF)
	3Dラインストリップ

GxPrimitiveVertex *	draw3DTriangleList (u32 vertexCount, const GxPrimitiveMaterial &material, const GxVector3 &priorityPoint, u32 viewFlag=0xFFFFFFFF)
	3Dトライアングルリスト

GxPrimitiveVertex *	draw3DTriangleStrip (u32 vertexCount, const GxPrimitiveMaterial &material, const GxVector3 &priorityPoint, u32 viewFlag=0xFFFFFFFF)
	3Dトライアングルストリップ

GxPrimitiveVertex *	draw3DTriangleFan (u32 vertexCount, const GxPrimitiveMaterial &material, const GxVector3 &priorityPoint, u32 viewFlag=0xFFFFFFFF)
	3Dトライアングルファン

GxPrimitiveVertex *	draw3DQuadList (u32 vertexCount, const GxPrimitiveMaterial &material, const GxVector3 &priorityPoint, u32 viewFlag=0xFFFFFFFF)
	3Dクアッドリストリスト

GX_FORCE_INLINE void	draw3DPoint (const GxVector3 &position, const GxColor color, const GxPrimitiveMaterial &material, u32 viewFlag=0xFFFFFFFF)
	3D点

GX_FORCE_INLINE void	draw3DLineF (const GxVector3 &position0, const GxVector3 &position1, const GxColor color, const GxPrimitiveMaterial &material, u32 viewFlag=0xFFFFFFFF)
	3Dライン(Flat)

GX_FORCE_INLINE void	draw3DLineG (const GxVector3 &position0, const GxVector3 &position1, const GxColor color0, const GxColor color1, const GxPrimitiveMaterial &material, u32 viewFlag=0xFFFFFFFF)
	3Dライン(Gradation)

GX_FORCE_INLINE void	draw3DTriangleF (const GxVector3 &position0, const GxVector3 &position1, const GxVector3 &position2, const GxColor color, PRIMITIVE_FILL_MODE fillMode, const GxPrimitiveMaterial &material, u32 viewFlag=0xFFFFFFFF)
	3D三角形(Flat)

void	draw3DTriangleG (const GxVector3 &position0, const GxVector3 &position1, const GxVector3 &position2, const GxColor color0, const GxColor color1, const GxColor color2, PRIMITIVE_FILL_MODE fillMode, const GxPrimitiveMaterial &material, u32 viewFlag=0xFFFFFFFF)
	3D三角形(Gradation)

GX_FORCE_INLINE void	draw3DQuadF (const GxVector3 &position0, const GxVector3 &position1, const GxVector3 &position2, const GxVector3 &position3, const GxColor color, PRIMITIVE_FILL_MODE fillMode, const GxPrimitiveMaterial &material, u32 viewFlag=0xFFFFFFFF)
	3D四角形(Flat)

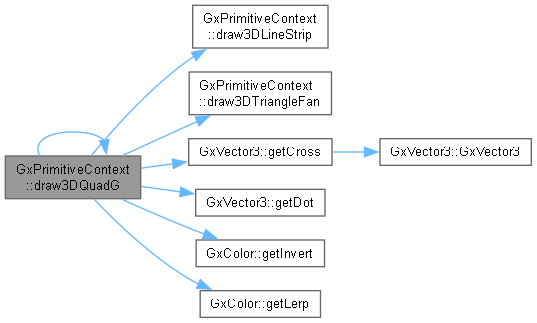

void	draw3DQuadG (const GxVector3 &position0, const GxVector3 &position1, const GxVector3 &position2, const GxVector3 &position3, const GxColor color0, const GxColor color1, const GxColor color2, const GxColor color3, PRIMITIVE_FILL_MODE fillMode, const GxPrimitiveMaterial &material, u32 viewFlag=0xFFFFFFFF)
	3D四角形(Gradation)

GX_FORCE_INLINE void	draw3DQuadTextureF (const GxVector3 &position0, const GxVector3 &position1, const GxVector3 &position2, const GxVector3 &position3, const GxColor color, GxFloat2 pUvArray, PRIMITIVE_FILL_MODE fillMode, const GxPrimitiveMaterial &material, GxFloat2 pUvArraySecond=nullptr, u32 viewFlag=0xFFFFFFFF)
	3Dテクスチャ付き四角形(Flat)

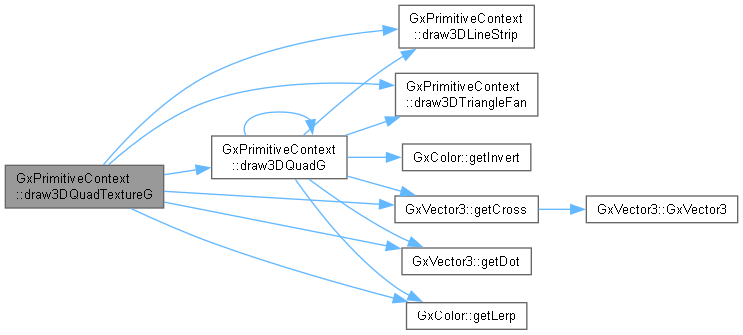

void	draw3DQuadTextureG (const GxVector3 &position0, const GxVector3 &position1, const GxVector3 &position2, const GxVector3 &position3, GxColor pColorArray, GxFloat2 pUvArray, PRIMITIVE_FILL_MODE fillMode, const GxPrimitiveMaterial &material, GxFloat2 *pUvArraySecond=nullptr, u32 viewFlag=0xFFFFFFFF)
	3Dテクスチャ付き四角形(Gradation)

GX_FORCE_INLINE void	draw3DArrowF (const GxVector3 &position0, const GxVector3 &position1, const GxColor color, PRIMITIVE_FILL_MODE fillMode, const GxPrimitiveMaterial &material, f32 arrowRate=0.2f, f32 arrowRadian=DEGREE_TO_RADIAN(30.0f), u32 viewFlag=0xFFFFFFFF)
	3Dベクトル(Flat)

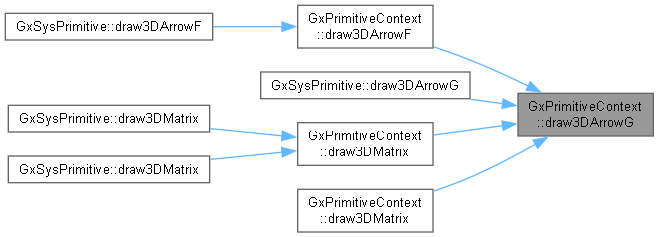

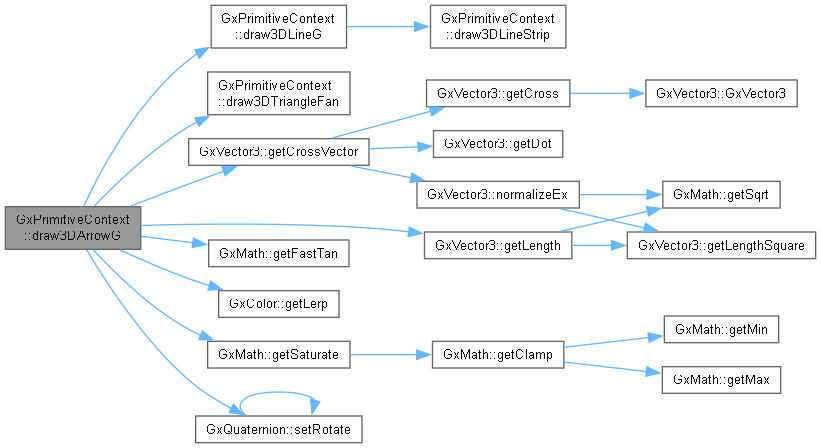

void	draw3DArrowG (const GxVector3 &position0, const GxVector3 &position1, const GxColor color0, const GxColor color1, PRIMITIVE_FILL_MODE fillMode, const GxPrimitiveMaterial &material, f32 arrowRate=0.2f, f32 arrowRadian=DEGREE_TO_RADIAN(30.0f), u32 viewFlag=0xFFFFFFFF)
	3Dベクトル(Gradation)

GX_FORCE_INLINE void	draw3DMatrix (const GxMatrixAffine &matrix, f32 size, PRIMITIVE_FILL_MODE fillMode, const GxPrimitiveMaterial &material, f32 arrowRate=0.2f, f32 arrowRadius=DEGREE_TO_RADIAN(30.0f), u32 viewFlag=0xFFFFFFFF)
	3Dマトリクス

GX_FORCE_INLINE void	draw3DMatrix (const GxVector3 &position, f32 size, PRIMITIVE_FILL_MODE fillMode, const GxPrimitiveMaterial &material, f32 arrowRate=0.2f, f32 arrowRadius=DEGREE_TO_RADIAN(30.0f), u32 viewFlag=0xFFFFFFFF)
	3Dマトリクス(ポジションのみ)

GX_FORCE_INLINE void	draw3DSphere (const GxShapeSphere &sphere, const GxColor color, u32 divide, PRIMITIVE_FILL_MODE fillMode, const GxPrimitiveMaterial &material, u32 viewFlag=0xFFFFFFFF)
	3D球(形状指定)

GX_FORCE_INLINE void	draw3DSphere (const GxVector3 &center, f32 radius, const GxColor color, u32 divide, PRIMITIVE_FILL_MODE fillMode, const GxPrimitiveMaterial &material, u32 viewFlag=0xFFFFFFFF)
	3D球(ポジション指定)

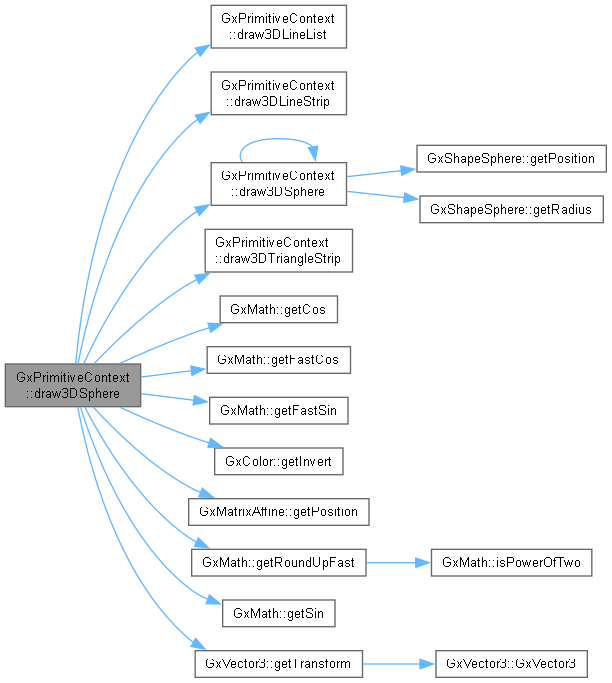

void	draw3DSphere (const GxMatrixAffine &matrix, f32 radius, const GxColor color, u32 divide, PRIMITIVE_FILL_MODE fillMode, const GxPrimitiveMaterial &material, u32 viewFlag=0xFFFFFFFF)
	3D球(行列指定)

GX_FORCE_INLINE void	draw3DBox (const GxShapeBox &box, const GxColor color, PRIMITIVE_FILL_MODE fillMode, const GxPrimitiveMaterial &material, u32 viewFlag=0xFFFFFFFF)
	3D箱(形状指定)

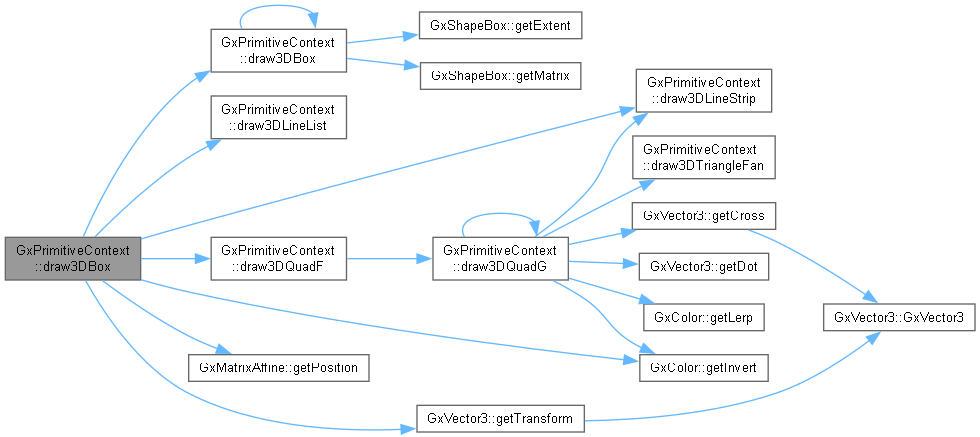

void	draw3DBox (const GxMatrixAffine &matrix, const GxVector3 &extent, const GxColor color, PRIMITIVE_FILL_MODE fillMode, const GxPrimitiveMaterial &material, u32 viewFlag=0xFFFFFFFF)
	3D箱(行列指定)

void	draw3DCustom (const GxPrimitiveMaterial &material, const GxVector3 &priorityPoint, u32 viewFlag=0xFFFFFFFF)
	カスタム3D描画を行う。GxPrimitiveMaterial::_handler コールバックのみ実行する

Additional Inherited Members
Public Member Functions inherited from GxClassBase
constexpr	GxClassBase (void)
	コンストラクタ

constexpr	GxClassBase (const GxClassBase &base)
	コピーコンストラクタ

	~GxClassBase (void) override
	デストラクタ

Public Member Functions inherited from GxClassBaseRoot
constexpr	GxClassBaseRoot (void)
	コンストラクタ

constexpr	GxClassBaseRoot (const GxClassBaseRoot &)
	コピーコンストラクタ

virtual	~GxClassBaseRoot (void)
	デストラクタ

constexpr GxClassBaseRoot &	operator= (const GxClassBaseRoot &)
	代入演算子

virtual GxRtti &	getRtti (void) const =0
	Rttiの取得

virtual GX_FORCE_INLINE const GxTypedObject *	getDefaultObject (void)
	デフォルトオブジェクトを取得

GX_FORCE_INLINE b32	isDefaultObject (void)
	デフォルトオブジェクト判定

Static Public Member Functions inherited from GxClassBaseRoot
static GX_FORCE_INLINE GxRtti &	__getStaticRtti (void)
	Rttiの取得

Detailed Description

プリミティブの並列発行を管理します。

プリミティブコンテキストクラス

Member Function Documentation

◆ clear()

void GxPrimitiveContext::clear	(	const GxColor &	clearColor,
		f32	priority,
		u32	viewFlag = 0xFFFFFFFF )

画面クリア

Parameters

clearColor	[in] クリアカラー
priority	[in] 優先度
viewFlag	[in] 描画するビューフラグ

Here is the call graph for this function:

◆ copyRenderTargetToTexture()

void GxPrimitiveContext::copyRenderTargetToTexture	(	u32	index,
		GxRenderTexture *	pTexture,
		u32	dstMipLevel,
		const GxRect *	pSrcRect,
		const GxPoint2 *	pDstPoint,
		f32	priority,
		u32	viewFlag = 0xFFFFFFFF )

レンダーターゲットをテクスチャにコピー

Parameters

index	[in] インデックス
pTexture	[in] レンダーテクスチャ
dstMipLevel	[in] ミップレベル
pSrcRect	[in] 描画元矩形
pDstPoint	[in] 描画先座標
priority	[in] 優先度
viewFlag	[in] 描画するビューフラグ

Here is the call graph for this function:

◆ draw2DArrowF()

void GxPrimitiveContext::draw2DArrowF	(	const GxVector3 &	position0,
		const GxVector3 &	position1,
		const GxColor	color,
		PRIMITIVE_FILL_MODE	fillMode,
		const GxPrimitiveMaterial &	material,
		f32	arrowRate = 0.2f,
		f32	arrowRadius = DEGREE_TO_RADIAN(30.0f) )

2Dベクトル(Flat)

Parameters

position0	[in] 座標
position1	[in] 座標
color	[in] 色
fillMode	[in] 塗りつぶしモード
material	[in] マテリアル
arrowRate	[in] 矢印の比率
arrowRadius	[in] 矢印の半径

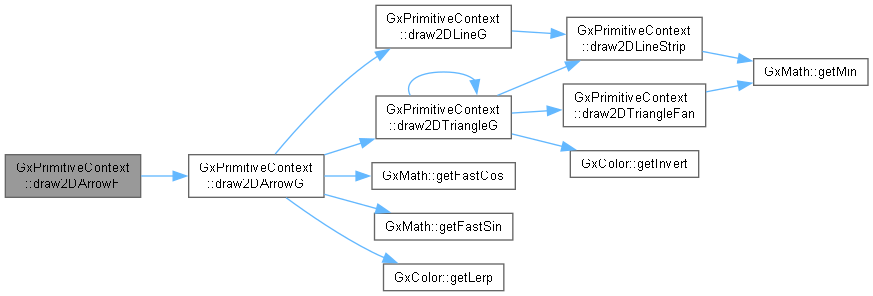

Here is the call graph for this function:

Here is the caller graph for this function:

◆ draw2DArrowG()

void GxPrimitiveContext::draw2DArrowG	(	const GxVector3 &	position0,
		const GxVector3 &	position1,
		const GxColor	color0,
		const GxColor	color1,
		PRIMITIVE_FILL_MODE	fillMode,
		const GxPrimitiveMaterial &	material,
		f32	arrowRate = 0.2f,
		f32	arrowRadius = DEGREE_TO_RADIAN(30.0f) )

2Dベクトル(Gradation)

Parameters

position0	[in] 座標
position1	[in] 座標
color0	[in] 色
color1	[in] 色
fillMode	[in] 塗りつぶしモード
material	[in] マテリアル
arrowRate	[in] 矢印の比率
arrowRadius	[in] 矢印の半径

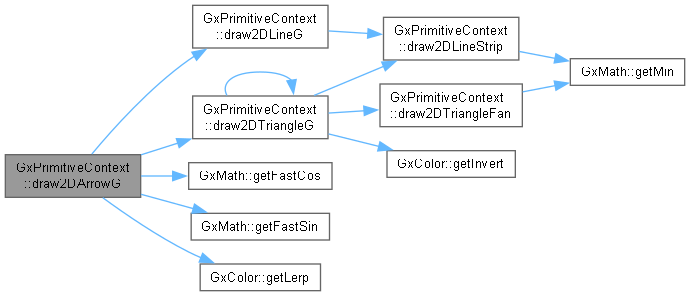

Here is the call graph for this function:

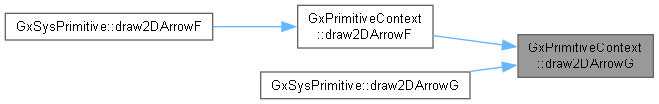

Here is the caller graph for this function:

◆ draw2DCircleF()

void GxPrimitiveContext::draw2DCircleF	(	const GxVector3 &	position,
		f32	radius,
		const GxColor	color,
		u32	divide,
		PRIMITIVE_FILL_MODE	fillMode,
		const GxPrimitiveMaterial &	material )

2D円(Flat)

Parameters

position	[in] 座標
radius	[in] 半径
color	[in] 色
divide	[in] 円弧分割数
fillMode	[in] 塗りつぶしモード
material	[in] マテリアル

Here is the call graph for this function:

Here is the caller graph for this function:

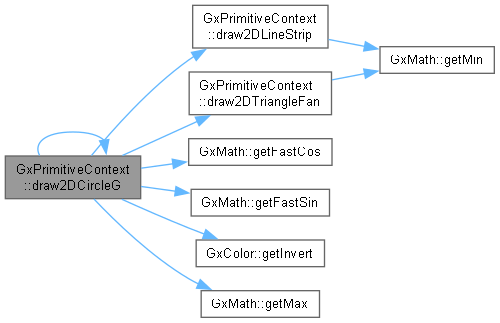

◆ draw2DCircleG()

void GxPrimitiveContext::draw2DCircleG	(	const GxVector3 &	position,
		f32	radius,
		const GxColor	color0,
		const GxColor	color1,
		u32	divide,
		PRIMITIVE_FILL_MODE	fillMode,
		const GxPrimitiveMaterial &	material )

2D円(Gradation)

Parameters

position	[in] 中心座標(z成分は描画優先度0.0f～1.0f)
radius	[in] 半径
color0	[in] 中心色
color1	[in] 円周色
divide	[in] 円周分割数
fillMode	[in] 塗りつぶしモード
material	[in] マテリアル

Here is the call graph for this function:

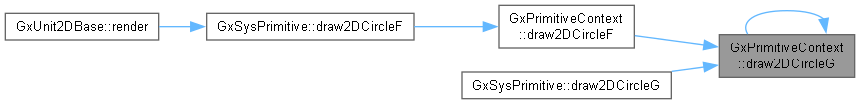

Here is the caller graph for this function:

◆ draw2DCustom()

void GxPrimitiveContext::draw2DCustom	(	const GxPrimitiveMaterial &	material,
		f32	priority )

カスタム2D描画を行う。GxPrimitiveMaterial::_handler コールバックのみ実行する

完全なカスタム2D描画を行う。_handler コールバックのみ実行した後、プリミティブ用の VertexBuffer, IndexBuffer, VertexDeclaration に戻す

Parameters

material	[in] マテリアル
priority	[in] 優先度

Here is the call graph for this function:

Here is the caller graph for this function:

◆ draw2DFanF()

void GxPrimitiveContext::draw2DFanF	(	const GxVector3 &	position,
		f32	radius,
		f32	startRadian,
		f32	deltaRadian,
		const GxColor	color,
		u32	divide,
		PRIMITIVE_FILL_MODE	fillMode,
		const GxPrimitiveMaterial &	material )

2D扇形(Flat)

Parameters

position	[in] 中心座標。z座標は奥行き。
radius	[in] 半径
startRadian	[in] 開始角度[deg]時計の３時を０として、反時計を正とする
deltaRadian	[in] 描画する角度量[deg]
color	[in] 色
divide	[in] 円弧分割数
fillMode	[in] 塗りつぶしモード
material	[in] マテリアル

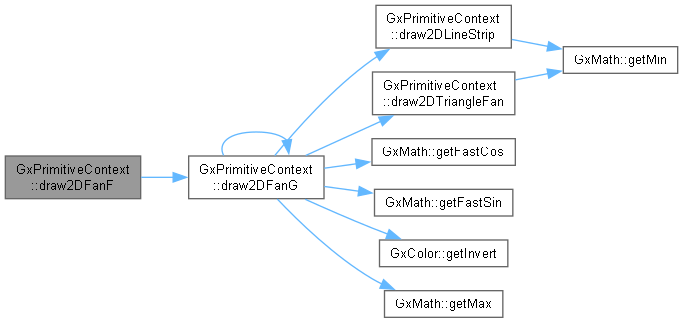

Here is the call graph for this function:

Here is the caller graph for this function:

◆ draw2DFanG()

void GxPrimitiveContext::draw2DFanG	(	const GxVector3 &	position,
		f32	radius,
		f32	startRadian,
		f32	deltaRadian,
		const GxColor	color0,
		const GxColor	color1,
		u32	divide,
		PRIMITIVE_FILL_MODE	fillMode,
		const GxPrimitiveMaterial &	material )

2D扇形(Gradation)

Parameters

position	[in] 中心座標(z成分は描画優先度0.0f～1.0f)
radius	[in] 半径
startRadian	[in] 開始角度[rad]時計の３時を０として、反時計を正とする
deltaRadian	[in] 描画する角度量[rad]
color0	[in] 色
color1	[in] 色
divide	[in] 円弧分割数
fillMode	[in] 塗りつぶしモード
material	[in] マテリアル

Here is the call graph for this function:

Here is the caller graph for this function:

◆ draw2DLineF()

void GxPrimitiveContext::draw2DLineF	(	const GxVector3 &	position0,
		const GxVector3 &	position1,
		const GxColor	color,
		const GxPrimitiveMaterial &	material )

2Dライン(Flat)

Parameters

position0	[in] 座標
position1	[in] 座標
color	[in] 色
material	[in] マテリアル

Here is the call graph for this function:

Here is the caller graph for this function:

◆ draw2DLineG()

void GxPrimitiveContext::draw2DLineG	(	const GxVector3 &	position0,
		const GxVector3 &	position1,
		const GxColor	color0,
		const GxColor	color1,
		const GxPrimitiveMaterial &	material )

2Dライン(Gradation)

Parameters

position0	[in] 座標
position1	[in] 座標
color0	[in] 色
color1	[in] 色
material	[in] マテリアル

Here is the call graph for this function:

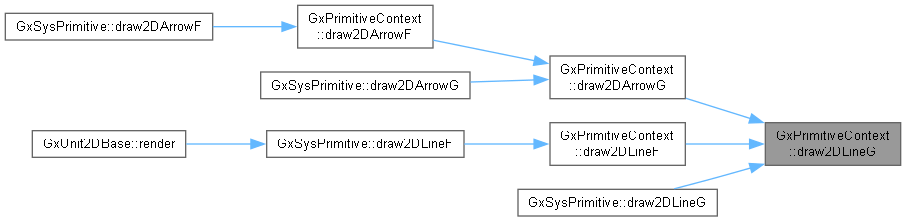

Here is the caller graph for this function:

◆ draw2DLineList()

GxPrimitiveVertex * GxPrimitiveContext::draw2DLineList	(	u32	vertexCount,
		const GxPrimitiveMaterial &	material,
		f32	priority )

2Dラインリスト

Parameters

vertexCount	[in] 頂点数
material	[in] マテリアル
priority	[in] 描画優先度(0.0f～1.0f)

Returns: 頂点バッファ配列のポインタ

Here is the call graph for this function:

Here is the caller graph for this function:

◆ draw2DLineStrip()

GxPrimitiveVertex * GxPrimitiveContext::draw2DLineStrip	(	u32	vertexCount,
		const GxPrimitiveMaterial &	material,
		f32	priority )

2Dラインストリップ

Parameters

vertexCount	[in] 頂点数
material	[in] マテリアル
priority	[in] 描画優先度(0.0f～1.0f)

Returns: 頂点バッファ配列のポインタ

Here is the call graph for this function:

Here is the caller graph for this function:

◆ draw2DPoint()

void GxPrimitiveContext::draw2DPoint	(	const GxVector3 &	position,
		const GxColor	color,
		const GxPrimitiveMaterial &	material )

2D点

Parameters

position	[in] 座標
color	[in] 色
material	[in] マテリアル

Here is the caller graph for this function:

◆ draw2DPolyLineF()

void GxPrimitiveContext::draw2DPolyLineF	(	const GxVector3 &	position0,
		const GxVector3 &	position1,
		u32	width,
		const GxColor	color,
		PRIMITIVE_FILL_MODE	fillMode,
		const GxPrimitiveMaterial &	material )

2Dポリライン(Flat)

Parameters

position0	[in] 座標
position1	[in] 座標
width	[in] 幅
color	[in] 色
fillMode	[in] 塗りつぶしモード
material	[in] マテリアル

Here is the call graph for this function:

Here is the caller graph for this function:

◆ draw2DPolyLineG()

void GxPrimitiveContext::draw2DPolyLineG	(	const GxVector3 &	position0,
		const GxVector3 &	position1,
		u32	width,
		const GxColor	color0,
		const GxColor	color1,
		PRIMITIVE_FILL_MODE	fillMode,
		const GxPrimitiveMaterial &	material )

2Dポリライン(Gradation)

Parameters

position0	[in] 開始点(z成分は描画優先度0.0f～1.0f)
position1	[in] 終了点(z成分は描画優先度0.0f～1.0f)
width	[in] 幅
color0	[in] 色
color1	[in] 色
fillMode	[in] 塗りつぶしモード
material	[in] マテリアル

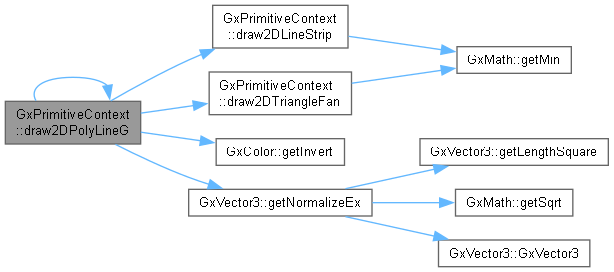

Here is the call graph for this function:

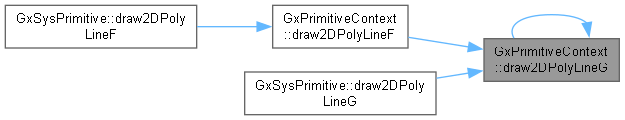

Here is the caller graph for this function:

◆ draw2DQuadList()

GxPrimitiveVertex * GxPrimitiveContext::draw2DQuadList	(	u32	vertexCount,
		const GxPrimitiveMaterial &	material,
		f32	priority )

2Dクアッドリスト

Parameters

vertexCount	[in] 頂点数
material	[in] マテリアル
priority	[in] 描画優先度(0.0f～1.0f)

Returns: 頂点バッファ配列のポインタ

Here is the call graph for this function:

Here is the caller graph for this function:

◆ draw2DRectF() [1/3]

void GxPrimitiveContext::draw2DRectF	(	const GxRectF &	rect,
		f32	positionZ,
		f32	z,
		const GxColor	color,
		PRIMITIVE_FILL_MODE	fillMode,
		const GxPrimitiveMaterial &	material )

2D四角形(z値指定、Flat)

Parameters

rect	[in] 矩形
positionZ	[in] z座標
z	[in] z値
color	[in] 色
fillMode	[in] 塗りつぶしモード
material	[in] マテリアル

Here is the call graph for this function:

◆ draw2DRectF() [2/3]

void GxPrimitiveContext::draw2DRectF	(	const GxRectF &	rect,
		f32	z,
		const GxColor	color,
		PRIMITIVE_FILL_MODE	fillMode,
		const GxPrimitiveMaterial &	material )

2D四角形(Flat)

Parameters

rect	[in] 矩形
z	[in] z値
color	[in] 色
fillMode	[in] 塗りつぶしモード
material	[in] マテリアル

Here is the call graph for this function:

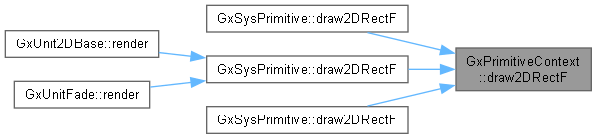

Here is the caller graph for this function:

◆ draw2DRectF() [3/3]

void GxPrimitiveContext::draw2DRectF	(	const GxRectF &	rect,
		f32	z,
		const GxVector2 &	rotateCenter,
		const f32	rotateRadian,
		const GxColor	color,
		PRIMITIVE_FILL_MODE	fillMode,
		const GxPrimitiveMaterial &	material )

2D回転あり四角形(Flat)

Parameters

rect	[in] 矩形
z	[in] z値
rotateCenter	[in] 回転の中心
rotateRadian	[in] 回転角度
color	[in] 色
fillMode	[in] 塗りつぶしモード
material	[in] マテリアル

Here is the call graph for this function:

◆ draw2DRectG() [1/3]

void GxPrimitiveContext::draw2DRectG	(	const GxRectF &	rect,
		f32	pos_z,
		f32	z,
		const GxColor	color0,
		const GxColor	color1,
		const GxColor	color2,
		const GxColor	color3,
		PRIMITIVE_FILL_MODE	fillMode,
		const GxPrimitiveMaterial &	material )

2D四角形(z値指定、Gradation)

Parameters

rect	[in] 矩形
z	[in] 深度
color0	[in] 色
color1	[in] 色
color2	[in] 色
color3	[in] 色
fillMode	[in] 塗りつぶしモード
material	[in] マテリアル

Here is the call graph for this function:

◆ draw2DRectG() [2/3]

void GxPrimitiveContext::draw2DRectG	(	const GxRectF &	rect,
		f32	z,
		const GxColor	color0,
		const GxColor	color1,
		const GxColor	color2,
		const GxColor	color3,
		PRIMITIVE_FILL_MODE	fillMode,
		const GxPrimitiveMaterial &	material )

2D四角形(Gradation)

Parameters

rect	[in] 矩形
z	[in] 深度
color0	[in] 色
color1	[in] 色
color2	[in] 色
color3	[in] 色
fillMode	[in] 塗りつぶしモード
material	[in] マテリアル

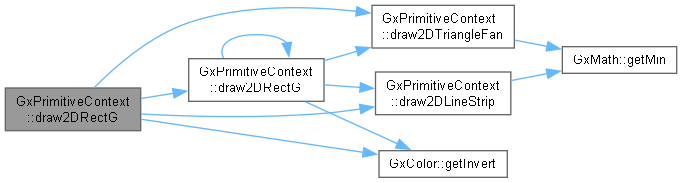

Here is the call graph for this function:

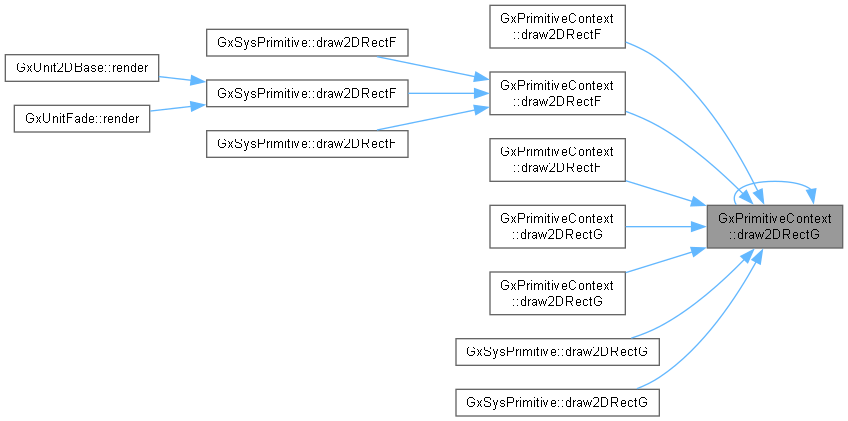

Here is the caller graph for this function:

◆ draw2DRectG() [3/3]

void GxPrimitiveContext::draw2DRectG	(	const GxRectF &	rect,
		f32	z,
		const GxVector2 &	rotateCenter,
		const f32	rotateRadian,
		const GxColor	color0,
		const GxColor	color1,
		const GxColor	color2,
		const GxColor	color3,
		PRIMITIVE_FILL_MODE	fillMode,
		const GxPrimitiveMaterial &	material )

2D回転あり四角形(Gradation)

Parameters

rect	[in] 矩形
z	[in] 深度
rotateCenter	[in] 回転を行う中心座標
rotateRadian	[in] 角度（ラジアン）
color0	[in] 色
color1	[in] 色
color2	[in] 色
color3	[in] 色
fillMode	[in] 塗りつぶしモード
material	[in] マテリアル

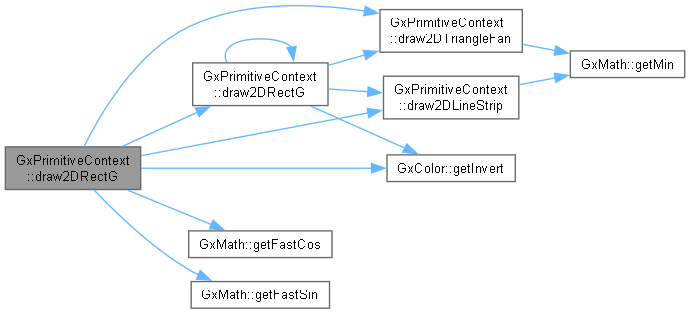

Here is the call graph for this function:

◆ draw2DRectTextureF() [1/2]

void GxPrimitiveContext::draw2DRectTextureF	(	const GxRectF &	rect,
		f32	z,
		const GxColor	color,
		const GxFloat2 &	uv0,
		const GxFloat2 &	uv1,
		const GxPrimitiveMaterial &	material,
		const GxFloat2 &	uvSecond0 = GxFloat2(0.f, 0.f),
		const GxFloat2 &	uvSecond1 = GxFloat2(1.f, 1.f) )

2Dテクスチャ付き四角形(Flat)

Parameters

rect	[in] 矩形
z	[in] z値
color	[in] 色
uv0	[in] UV値
uv1	[in] UV値
material	[in] マテリアル
uvSecond0	[in] セカンドUV値
uvSecond1	[in] セカンドUV値

Here is the call graph for this function:

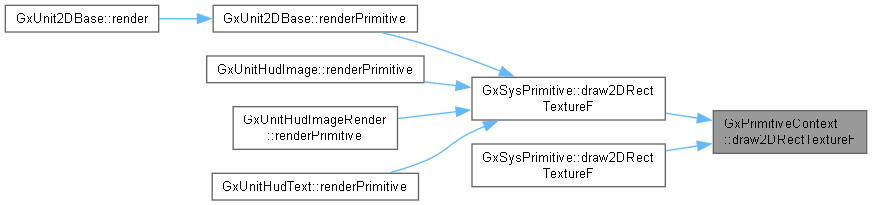

Here is the caller graph for this function:

◆ draw2DRectTextureF() [2/2]

void GxPrimitiveContext::draw2DRectTextureF	(	const GxRectF &	rect,
		f32	z,
		const GxVector2 &	rotateCenter,
		const f32	rotateRadian,
		const GxColor	color,
		const GxFloat2 &	uv0,
		const GxFloat2 &	uv1,
		const GxPrimitiveMaterial &	material,
		const GxFloat2 &	uvSecond0 = GxFloat2(0.f, 0.f),
		const GxFloat2 &	uvSecond1 = GxFloat2(1.f, 1.f) )

2Dテクスチャ付き回転あり四角形(Flat)

Parameters

rect	[in] 矩形
z	[in] z値
rotateCenter	[in] 回転の中心
rotateRadian	[in] 回転角度
color	[in] 色
uv0	[in] UV値
uv1	[in] UV値
material	[in] マテリアル
uvSecond0	[in] セカンドUV値
uvSecond1	[in] セカンドUV値

Here is the call graph for this function:

◆ draw2DRectTextureG() [1/4]

void GxPrimitiveContext::draw2DRectTextureG	(	const GxRectF &	rect,
		f32	positionZ,
		f32	z,
		const GxColor	color0,
		const GxColor	color1,
		const GxColor	color2,
		const GxColor	color3,
		const GxFloat2 &	uv0,
		const GxFloat2 &	uv1,
		const GxPrimitiveMaterial &	material,
		const GxFloat2 &	uvSecond0 = GxFloat2(0.f, 0.f),
		const GxFloat2 &	uvSecond1 = GxFloat2(1.f, 1.f) )

2Dテクスチャ付き四角形(Z値指定、Gradation)

Parameters

rect	[in] 矩形
positionZ	[in] z座標
z	[in] z値
color0	[in] 色
color1	[in] 色
color2	[in] 色
color3	[in] 色
uv0	[in] UV値
uv1	[in] UV値
material	[in] マテリアル
uvSecond0	[in] セカンドUV値
uvSecond1	[in] セカンドUV値

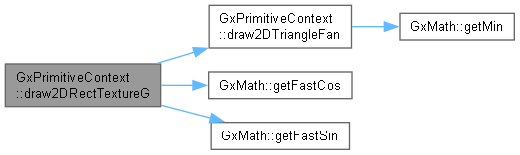

Here is the call graph for this function:

◆ draw2DRectTextureG() [2/4]

void GxPrimitiveContext::draw2DRectTextureG	(	const GxRectF &	rect,
		f32	positionZ,
		f32	z,
		const GxVector2 &	rotateCenter,
		const f32	rotateRadian,
		const GxColor	color0,
		const GxColor	color1,
		const GxColor	color2,
		const GxColor	color3,
		const GxFloat2 &	uv0,
		const GxFloat2 &	uv1,
		const GxPrimitiveMaterial &	material,
		const GxFloat2 &	uvSecond0 = GxFloat2(0.f, 0.f),
		const GxFloat2 &	uvSecond1 = GxFloat2(1.f, 1.f) )

2Dテクスチャ付き回転あり四角形(Z値指定、Gradation)

Parameters

rect	[in] 矩形
positionZ	[in] z座標
z	[in] z値
rotateCenter	[in] 回転の中心
rotateRadian	[in] 回転角度
color0	[in] 色
color1	[in] 色
color2	[in] 色
color3	[in] 色
uv0	[in] UV値
uv1	[in] UV値
material	[in] マテリアル
uvSecond0	[in] セカンドUV値
uvSecond1	[in] セカンドUV値

Here is the call graph for this function:

◆ draw2DRectTextureG() [3/4]

void GxPrimitiveContext::draw2DRectTextureG	(	const GxRectF &	rect,
		f32	z,
		const GxColor	color0,
		const GxColor	color1,
		const GxColor	color2,
		const GxColor	color3,
		const GxFloat2 &	uv0,
		const GxFloat2 &	uv1,
		const GxPrimitiveMaterial &	material,
		const GxFloat2 &	uvSecond0 = GxFloat2(0.f, 0.f),
		const GxFloat2 &	uvSecond1 = GxFloat2(1.f, 1.f) )

2Dテクスチャ付き四角形(Gradation)

Parameters

rect	[in] 矩形
z	[in] z値
color0	[in] 色
color1	[in] 色
color2	[in] 色
color3	[in] 色
uv0	[in] UV値
uv1	[in] UV値
material	[in] マテリアル
uvSecond0	[in] セカンドUV値
uvSecond1	[in] セカンドUV値

Here is the call graph for this function:

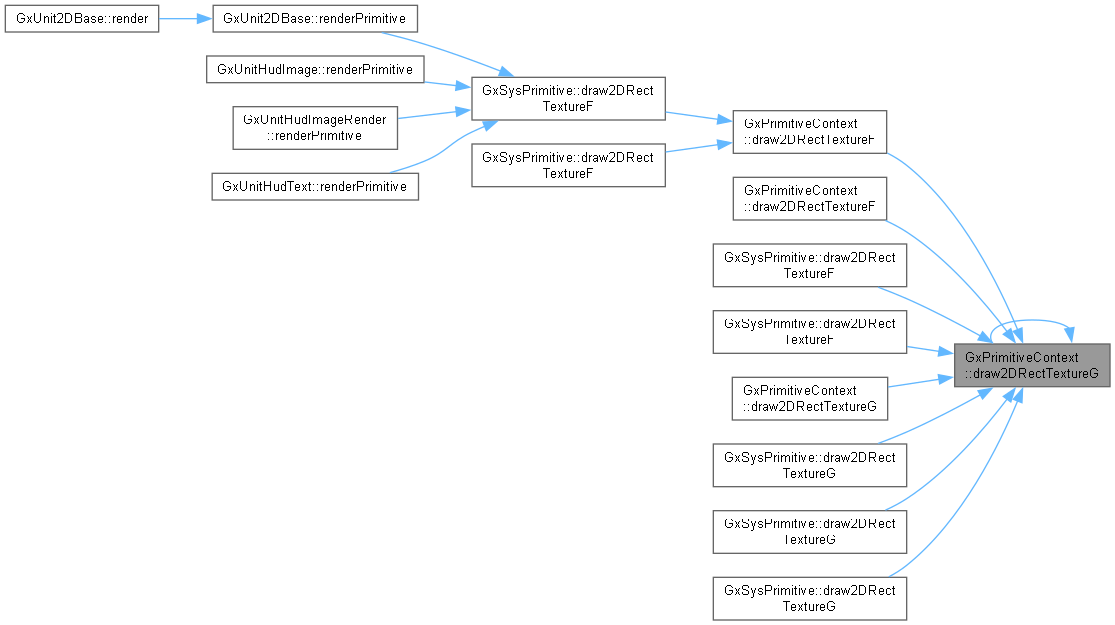

Here is the caller graph for this function:

◆ draw2DRectTextureG() [4/4]

void GxPrimitiveContext::draw2DRectTextureG	(	const GxRectF &	rect,
		f32	z,
		const GxVector2 &	rotateCenter,
		const f32	rotateRadian,
		const GxColor	color0,
		const GxColor	color1,
		const GxColor	color2,
		const GxColor	color3,
		const GxFloat2 &	uv0,
		const GxFloat2 &	uv1,
		const GxPrimitiveMaterial &	material,
		const GxFloat2 &	uvSecond0 = GxFloat2(0.f, 0.f),
		const GxFloat2 &	uvSecond1 = GxFloat2(1.f, 1.f) )

2Dテクスチャ付き回転あり四角形(Gradation)

Parameters

rect	[in] 矩形
z	[in] z値
rotateCenter	[in] 回転の中心
rotateRadian	[in] 回転角度
color0	[in] 色
color1	[in] 色
color2	[in] 色
color3	[in] 色
uv0	[in] UV値
uv1	[in] UV値
material	[in] マテリアル
uvSecond0	[in] セカンドUV値
uvSecond1	[in] セカンドUV値

Here is the call graph for this function:

◆ draw2DTriangleF()

void GxPrimitiveContext::draw2DTriangleF	(	const GxVector3 &	position0,
		const GxVector3 &	position1,
		const GxVector3 &	position2,
		const GxColor	color,
		PRIMITIVE_FILL_MODE	fillMode,
		const GxPrimitiveMaterial &	material )

2D三角形(Flat)

Parameters

position0	[in] 座標
position1	[in] 座標
position2	[in] 座標
color	[in] 色
fillMode	[in] 塗りつぶしモード
material	[in] マテリアル

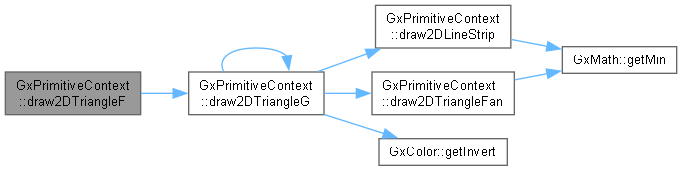

Here is the call graph for this function:

Here is the caller graph for this function:

◆ draw2DTriangleFan()

GxPrimitiveVertex * GxPrimitiveContext::draw2DTriangleFan	(	u32	vertexCount,
		const GxPrimitiveMaterial &	material,
		f32	priority )

2Dトライアングルファン

Parameters

vertexCount	[in] 頂点数
material	[in] マテリアル
priority	[in] 描画優先度(0.0f～1.0f)

Returns: 頂点バッファ配列のポインタ

Here is the call graph for this function:

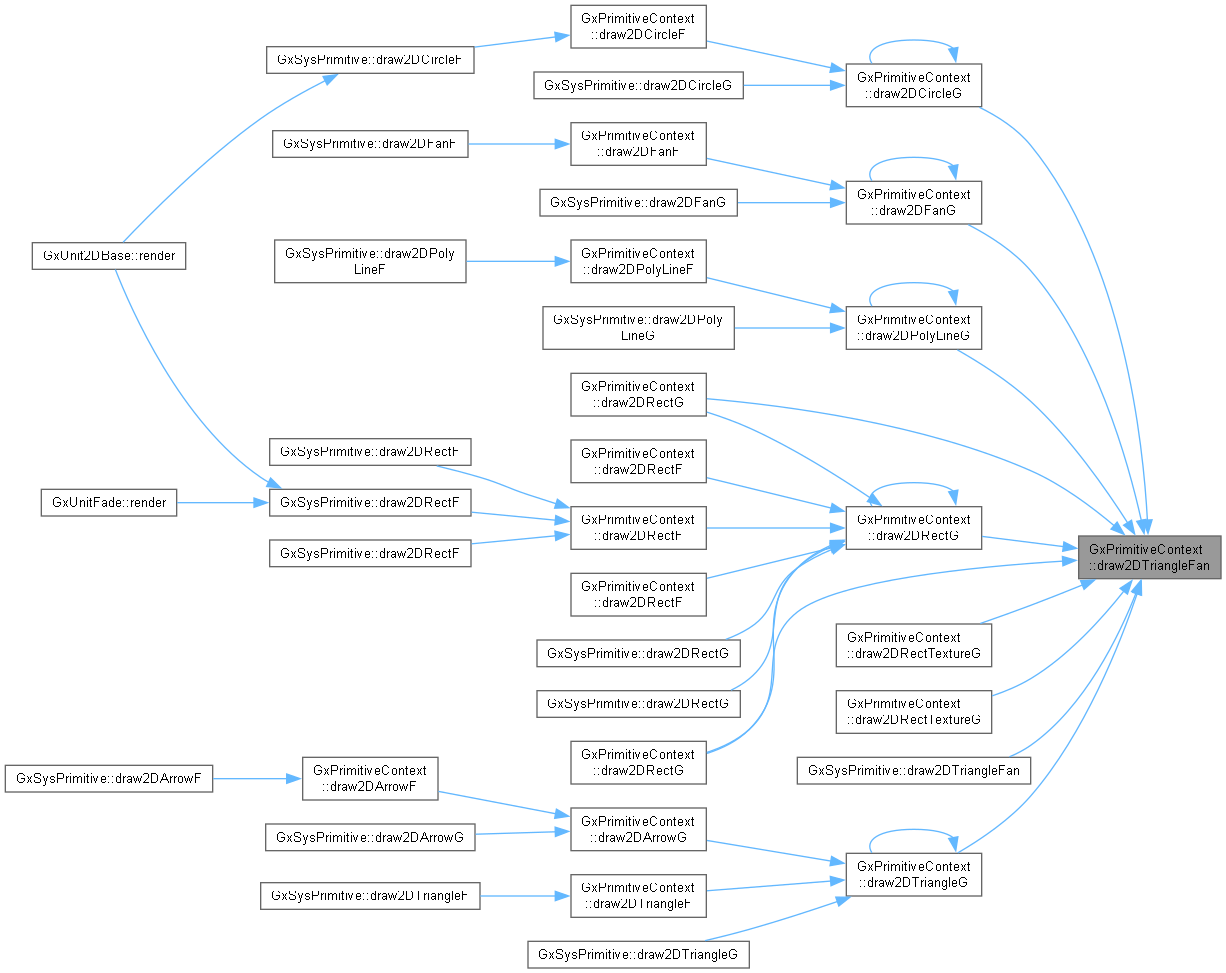

Here is the caller graph for this function:

◆ draw2DTriangleG()

void GxPrimitiveContext::draw2DTriangleG	(	const GxVector3 &	position0,
		const GxVector3 &	position1,
		const GxVector3 &	position2,
		const GxColor	color0,
		const GxColor	color1,
		const GxColor	color2,
		PRIMITIVE_FILL_MODE	fillMode,
		const GxPrimitiveMaterial &	material )

2D三角形(Gradation)

Parameters

position0	[in] 頂点(z成分は描画優先度0.0f～1.0f)
position1	[in] 頂点(z成分は描画優先度0.0f～1.0f)
position2	[in] 頂点(z成分は描画優先度0.0f～1.0f)
color0	[in] 色
color1	[in] 色
color2	[in] 色
fillMode	[in] 塗りつぶしモード
material	[in] マテリアル

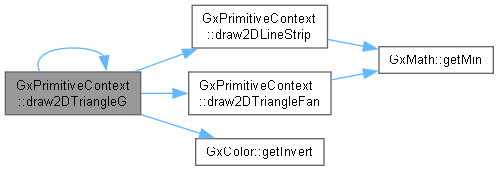

Here is the call graph for this function:

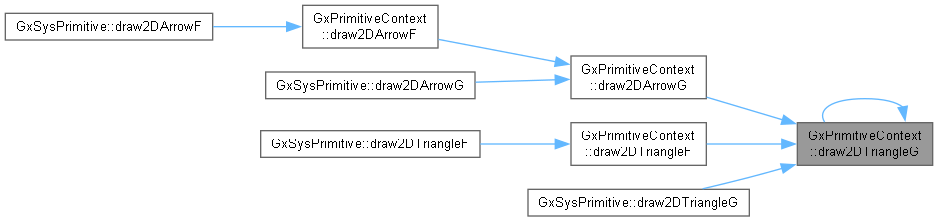

Here is the caller graph for this function:

◆ draw2DTriangleList()

GxPrimitiveVertex * GxPrimitiveContext::draw2DTriangleList	(	u32	vertexCount,
		const GxPrimitiveMaterial &	material,
		f32	priority )

2Dトライアングルリスト

Parameters

vertexCount	[in] 頂点数
material	[in] マテリアル
priority	[in] 描画優先度(0.0f～1.0f)

Returns: 頂点バッファ配列のポインタ

Here is the call graph for this function:

Here is the caller graph for this function:

◆ draw2DTriangleStrip()

GxPrimitiveVertex * GxPrimitiveContext::draw2DTriangleStrip	(	u32	vertexCount,
		const GxPrimitiveMaterial &	material,
		f32	priority )

2Dトライアングルストリップ

Parameters

vertexCount	[in] 頂点数
material	[in] マテリアル
priority	[in] 描画優先度(0.0f～1.0f)

Returns: 頂点バッファ配列のポインタ

Here is the call graph for this function:

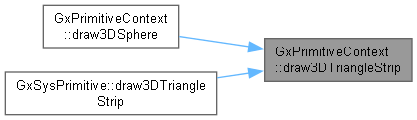

Here is the caller graph for this function:

◆ draw3DArrowF()

void GxPrimitiveContext::draw3DArrowF	(	const GxVector3 &	position0,
		const GxVector3 &	position1,
		const GxColor	color,
		PRIMITIVE_FILL_MODE	fillMode,
		const GxPrimitiveMaterial &	material,
		f32	arrowRate = 0.2f,
		f32	arrowRadian = DEGREE_TO_RADIAN(30.0f),
		u32	viewFlag = 0xFFFFFFFF )

3Dベクトル(Flat)

Parameters

position0	[in] 座標
position1	[in] 座標
color	[in] 色
fillMode	[in] 塗りつぶしモード
material	[in] マテリアル
arrowRate	[in] 矢印の比率
arrowRadian	[in] 矢印の半径
viewFlag	[in] 描画フラグ

Here is the call graph for this function:

Here is the caller graph for this function:

◆ draw3DArrowG()

void GxPrimitiveContext::draw3DArrowG	(	const GxVector3 &	position0,
		const GxVector3 &	position1,
		const GxColor	color0,
		const GxColor	color1,
		PRIMITIVE_FILL_MODE	fillMode,
		const GxPrimitiveMaterial &	material,
		f32	arrowRate = 0.2f,
		f32	arrowRadian = DEGREE_TO_RADIAN(30.0f),
		u32	viewFlag = 0xFFFFFFFF )

3Dベクトル(Gradation)

Parameters

position0	[in] 始点
position1	[in] 終点
color0	[in] 色
color1	[in] 色
fillMode	[in] 塗りつぶしモード
material	[in] マテリアル
arrowRate	[in] 矢尻部分の全体に対する割合(0.0f～1.0f)
arrowRadian	[in] 矢尻部分の鋭さ
viewFlag	[in] 描画するビューフラグ

Here is the call graph for this function:

Here is the caller graph for this function:

◆ draw3DBox() [1/2]

void GxPrimitiveContext::draw3DBox	(	const GxMatrixAffine &	coord,
		const GxVector3 &	extent,
		const GxColor	color,
		PRIMITIVE_FILL_MODE	fillMode,
		const GxPrimitiveMaterial &	material,
		u32	viewFlag = 0xFFFFFFFF )

3D箱(行列指定)

Parameters

coord	[in] 姿勢マトリクス
extent	[in] 各辺の長さの1/2
color	[in] 色
fillMode	[in] 塗りつぶしモード
material	[in] マテリアル
viewFlag	[in] 描画するビューフラグ

Here is the call graph for this function:

◆ draw3DBox() [2/2]

void GxPrimitiveContext::draw3DBox	(	const GxShapeBox &	box,
		const GxColor	color,
		PRIMITIVE_FILL_MODE	fillMode,
		const GxPrimitiveMaterial &	material,
		u32	viewFlag = 0xFFFFFFFF )

3D箱(形状指定)

Parameters

box	[in] 箱
color	[in] 色
fillMode	[in] 塗りつぶしモード
material	[in] マテリアル
viewFlag	[in] 描画フラグ

Here is the call graph for this function:

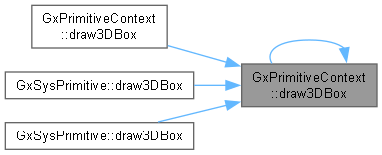

Here is the caller graph for this function:

◆ draw3DCustom()

void GxPrimitiveContext::draw3DCustom	(	const GxPrimitiveMaterial &	material,
		const GxVector3 &	priorityPoint,
		u32	viewFlag = 0xFFFFFFFF )

カスタム3D描画を行う。GxPrimitiveMaterial::_handler コールバックのみ実行する

完全なカスタム3D描画を行う。_handler コールバックのみ実行した後プリミティブ用の VertexBuffer, IndexBuffer, VertexDeclaration に戻す

Parameters

material	[in] マテリアル
priorityPoint	[in] 描画優先度に使うポイント(ワールド座標系)
viewFlag	[in] ビューフラグ

Here is the caller graph for this function:

◆ draw3DLineF()

void GxPrimitiveContext::draw3DLineF	(	const GxVector3 &	position0,
		const GxVector3 &	position1,
		const GxColor	color,
		const GxPrimitiveMaterial &	material,
		u32	viewFlag = 0xFFFFFFFF )

3Dライン(Flat)

Parameters

position0	[in] 座標
position1	[in] 座標
color	[in] 色
material	[in] マテリアル
viewFlag	[in] 描画フラグ

Here is the call graph for this function:

Here is the caller graph for this function:

◆ draw3DLineG()

void GxPrimitiveContext::draw3DLineG	(	const GxVector3 &	position0,
		const GxVector3 &	position1,
		const GxColor	color0,
		const GxColor	color1,
		const GxPrimitiveMaterial &	material,
		u32	viewFlag = 0xFFFFFFFF )

3Dライン(Gradation)

Parameters

position0	[in] 座標
position1	[in] 座標
color0	[in] 色
color1	[in] 色
material	[in] マテリアル
viewFlag	[in] 描画フラグ

Here is the call graph for this function:

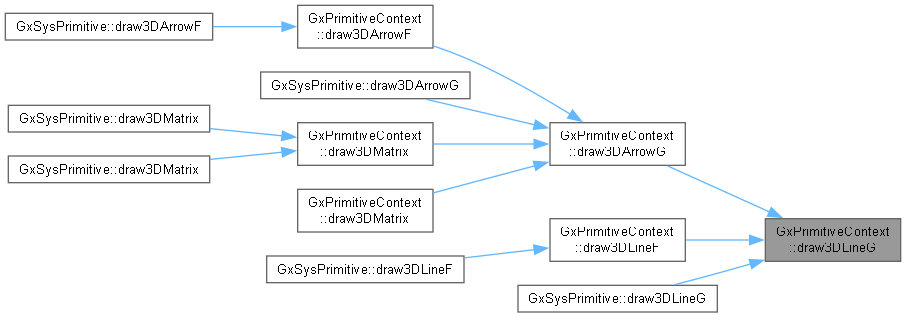

Here is the caller graph for this function:

◆ draw3DLineList()

GxPrimitiveVertex * GxPrimitiveContext::draw3DLineList	(	u32	vertexCount,
		const GxPrimitiveMaterial &	material,
		const GxVector3 &	priorityPoint,
		u32	viewFlag = 0xFFFFFFFF )

3Dラインリスト

Parameters

vertexCount	[in] 頂点数
material	[in] マテリアル
priorityPoint	[in] 描画優先度に使うポイント(ワールド座標系)
viewFlag	[in] 描画するビューフラグ

Returns: 頂点バッファ配列のポインタ

Here is the caller graph for this function:

◆ draw3DLineStrip()

GxPrimitiveVertex * GxPrimitiveContext::draw3DLineStrip	(	u32	vertexCount,
		const GxPrimitiveMaterial &	material,
		const GxVector3 &	priorityPoint,
		u32	viewFlag = 0xFFFFFFFF )

3Dラインストリップ

Parameters

vertexCount	[in] 頂点数
material	[in] マテリアル
priorityPoint	[in] 描画優先度に使うポイント(ワールド座標系)
viewFlag	[in] 描画するビューフラグ

Returns: 頂点バッファ配列のポインタ

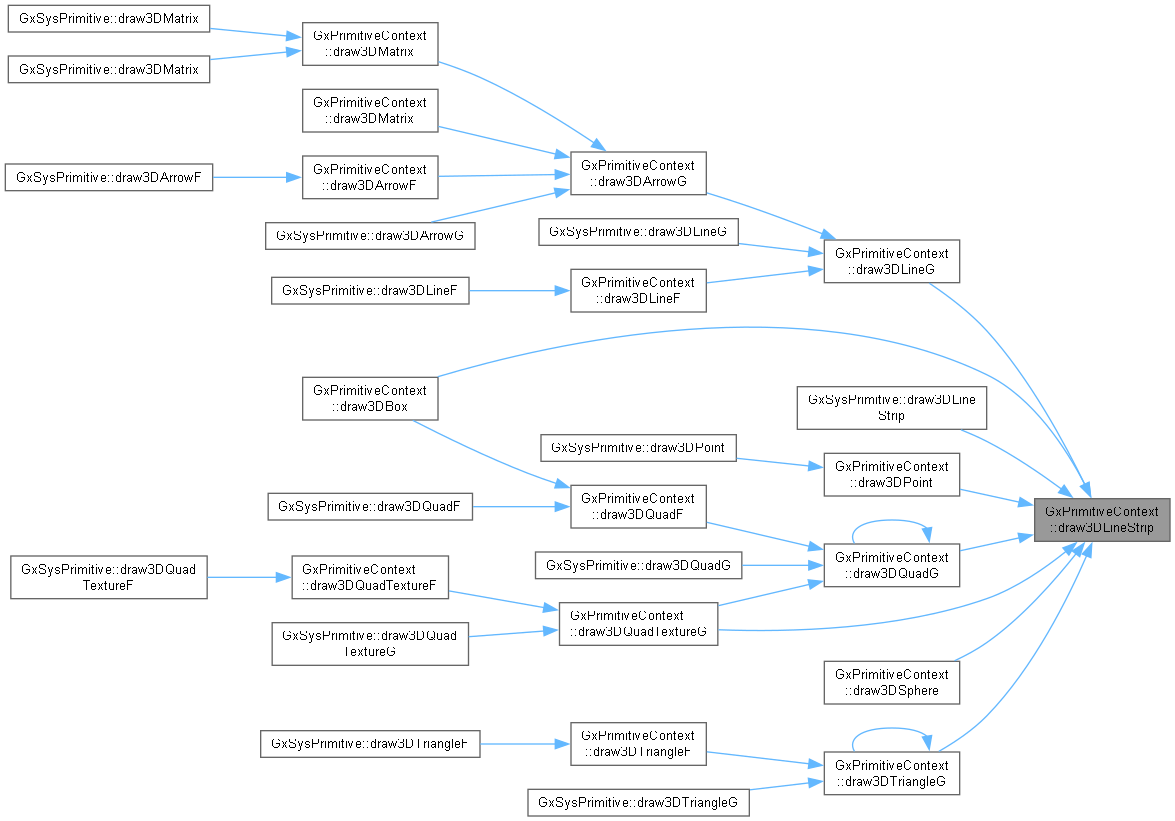

Here is the caller graph for this function:

◆ draw3DMatrix() [1/2]

void GxPrimitiveContext::draw3DMatrix	(	const GxMatrixAffine &	matrix,
		f32	size,
		PRIMITIVE_FILL_MODE	fillMode,
		const GxPrimitiveMaterial &	material,
		f32	arrowRate = 0.2f,
		f32	arrowRadius = DEGREE_TO_RADIAN(30.0f),
		u32	viewFlag = 0xFFFFFFFF )

3Dマトリクス

Parameters

matrix	[in] 行列
size	[in] サイズ
fillMode	[in] 塗りつぶしモード
material	[in] マテリアル
arrowRate	[in] 矢印の比率
arrowRadian	[in] 矢印の半径
viewFlag	[in] 描画フラグ

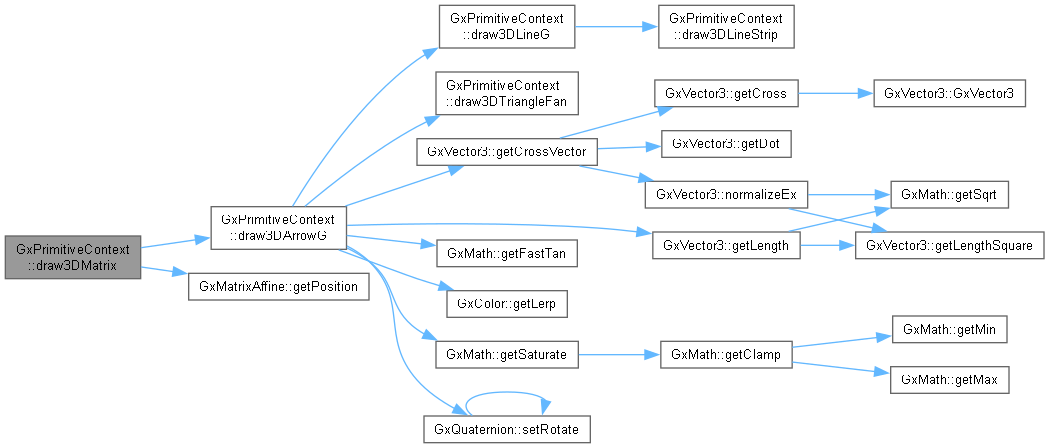

Here is the call graph for this function:

Here is the caller graph for this function:

◆ draw3DMatrix() [2/2]

void GxPrimitiveContext::draw3DMatrix	(	const GxVector3 &	position,
		f32	size,
		PRIMITIVE_FILL_MODE	fillMode,
		const GxPrimitiveMaterial &	material,
		f32	arrowRate = 0.2f,
		f32	arrowRadius = DEGREE_TO_RADIAN(30.0f),
		u32	viewFlag = 0xFFFFFFFF )

3Dマトリクス(ポジションのみ)

Parameters

position	[in] 座標
size	[in] サイズ
fillMode	[in] 塗りつぶしモード
material	[in] マテリアル
arrowRate	[in] 矢印の比率
arrowRadian	[in] 矢印の半径
viewFlag	[in] 描画フラグ

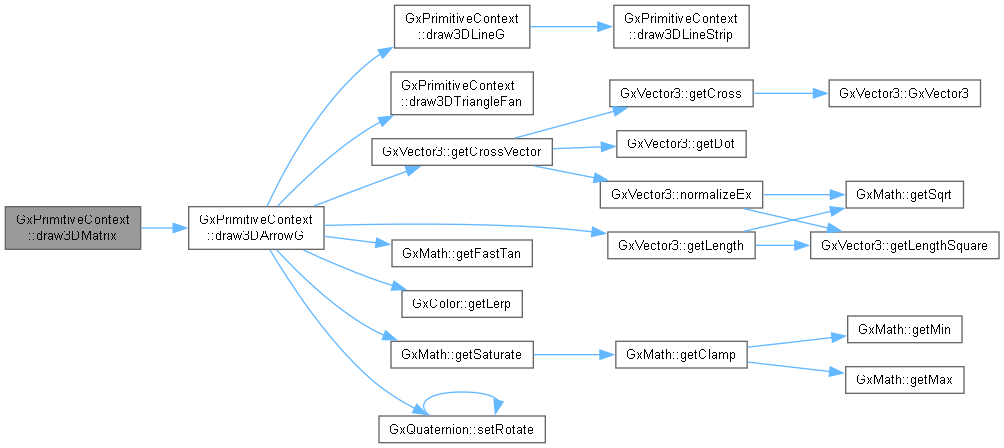

Here is the call graph for this function:

◆ draw3DPoint()

void GxPrimitiveContext::draw3DPoint	(	const GxVector3 &	position,
		const GxColor	color,
		const GxPrimitiveMaterial &	material,
		u32	viewFlag = 0xFFFFFFFF )

3D点

Parameters

position	[in] 座標
color	[in] 色
material	[in] マテリアル
viewFlag	[in] 描画フラグ

Here is the call graph for this function:

Here is the caller graph for this function:

◆ draw3DQuadF()

void GxPrimitiveContext::draw3DQuadF	(	const GxVector3 &	position0,
		const GxVector3 &	position1,
		const GxVector3 &	position2,
		const GxVector3 &	position3,
		const GxColor	color,
		PRIMITIVE_FILL_MODE	fillMode,
		const GxPrimitiveMaterial &	material,
		u32	viewFlag = 0xFFFFFFFF )

3D四角形(Flat)

Parameters

position0	[in] 座標
position1	[in] 座標
position2	[in] 座標
position3	[in] 座標
color	[in] 色
fillMode	[in] 塗りつぶしモード
material	[in] マテリアル
viewFlag	[in] 描画フラグ

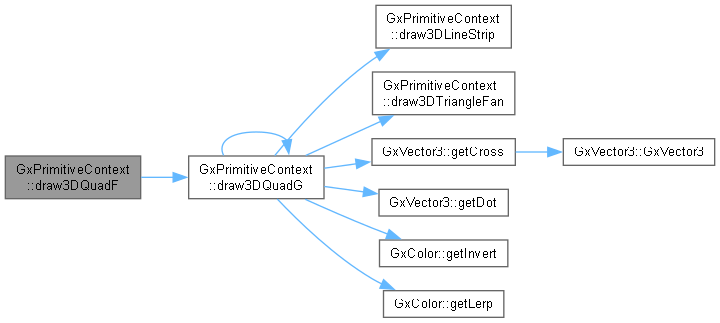

Here is the call graph for this function:

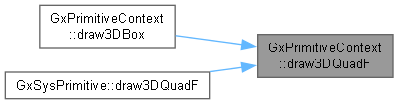

Here is the caller graph for this function:

◆ draw3DQuadG()

void GxPrimitiveContext::draw3DQuadG	(	const GxVector3 &	position0,
		const GxVector3 &	position1,
		const GxVector3 &	position2,
		const GxVector3 &	position3,
		const GxColor	color0,
		const GxColor	color1,
		const GxColor	color2,
		const GxColor	color3,
		PRIMITIVE_FILL_MODE	fillMode,
		const GxPrimitiveMaterial &	material,
		u32	viewFlag = 0xFFFFFFFF )

3D四角形(Gradation)

Parameters

position0	[in] 頂点
position1	[in] 頂点
position2	[in] 頂点
position3	[in] 頂点
color0	[in] 色
color1	[in] 色
color2	[in] 色
color3	[in] 色
fillMode	[in] 塗りつぶしモード
material	[in] マテリアル
viewFlag	[in] 描画するビューフラグ

Here is the call graph for this function:

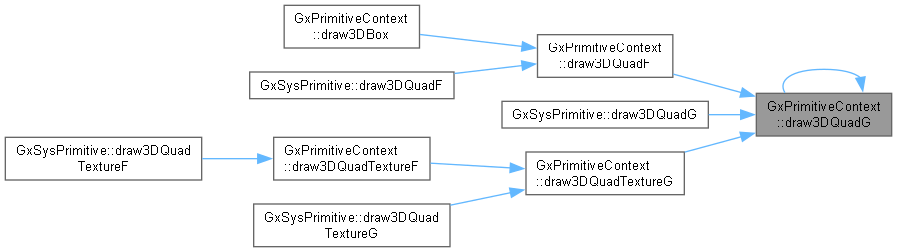

Here is the caller graph for this function:

◆ draw3DQuadList()

GxPrimitiveVertex * GxPrimitiveContext::draw3DQuadList	(	u32	vertexCount,
		const GxPrimitiveMaterial &	material,
		const GxVector3 &	priorityPoint,
		u32	viewFlag = 0xFFFFFFFF )

3Dクアッドリストリスト

Parameters

vertexCount	[in] 頂点数
material	[in] マテリアル
priorityPoint	[in] 描画優先度に使うポイント(ワールド座標系)
viewFlag	[in] 描画するビューフラグ

Returns: 頂点バッファ配列のポインタ

Here is the caller graph for this function:

◆ draw3DQuadTextureF()

void GxPrimitiveContext::draw3DQuadTextureF	(	const GxVector3 &	position0,
		const GxVector3 &	position1,
		const GxVector3 &	position2,
		const GxVector3 &	position3,
		const GxColor	color,
		GxFloat2 *	pUvArray,
		PRIMITIVE_FILL_MODE	fillMode,
		const GxPrimitiveMaterial &	material,
		GxFloat2 *	pUvArraySecond = nullptr,
		u32	viewFlag = 0xFFFFFFFF )

3Dテクスチャ付き四角形(Flat)

Parameters

position0	[in] 座標
position1	[in] 座標
position2	[in] 座標
position3	[in] 座標
pUvArray	[in] UV配列
color	[in] 色
fillMode	[in] 塗りつぶしモード
material	[in] マテリアル
pUvArraySecond	[in] セカンドUV配列
viewFlag	[in] 描画フラグ

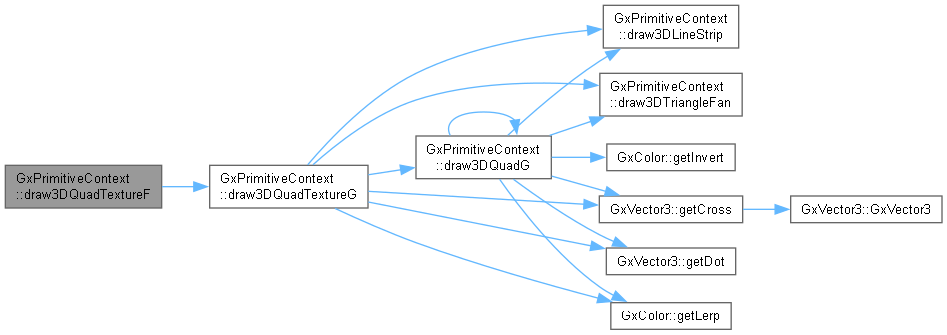

Here is the call graph for this function:

Here is the caller graph for this function:

◆ draw3DQuadTextureG()

void GxPrimitiveContext::draw3DQuadTextureG	(	const GxVector3 &	position0,
		const GxVector3 &	position1,
		const GxVector3 &	position2,
		const GxVector3 &	position3,
		GxColor *	pColorArray,
		GxFloat2 *	pUvArray,
		PRIMITIVE_FILL_MODE	fillMode,
		const GxPrimitiveMaterial &	material,
		GxFloat2 *	pUvArraySecond = nullptr,
		u32	viewFlag = 0xFFFFFFFF )

3Dテクスチャ付き四角形(Gradation)

Parameters

position0	[in] 頂点
position1	[in] 頂点
position2	[in] 頂点
position3	[in] 頂点
pColorArray	[in] 色配列[4]
pUvArray	[in] UV配列[2]
fillMode	[in] 塗りつぶしモード
material	[in] マテリアル
pUvArraySecond	[in] 第2UV配列[2]
viewFlag	[in] 描画するビューフラグ

Here is the call graph for this function:

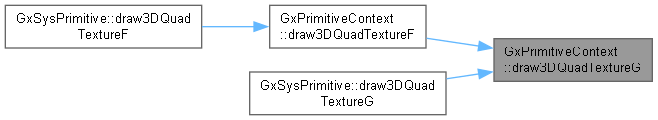

Here is the caller graph for this function:

◆ draw3DSphere() [1/3]

void GxPrimitiveContext::draw3DSphere	(	const GxMatrixAffine &	coord,
		f32	radius,
		const GxColor	color,
		u32	divide,
		PRIMITIVE_FILL_MODE	fillMode,
		const GxPrimitiveMaterial &	material,
		u32	viewFlag = 0xFFFFFFFF )

3D球(行列指定)

Parameters

coord	[in] 姿勢マトリクス
radius	[in] 半径
color	[in] 色
divide	[in] 分割数
fillMode	[in] 塗りつぶしモード
material	[in] マテリアル
viewFlag	[in] 描画するビューフラグ

Here is the call graph for this function:

◆ draw3DSphere() [2/3]

void GxPrimitiveContext::draw3DSphere	(	const GxShapeSphere &	sphere,
		const GxColor	color,
		u32	divide,
		PRIMITIVE_FILL_MODE	fillMode,
		const GxPrimitiveMaterial &	material,
		u32	viewFlag = 0xFFFFFFFF )

3D球(形状指定)

Parameters

sphere	[in] 球
color	[in] 色
divide	[in] 分割数
fillMode	[in] 塗りつぶしモード
material	[in] マテリアル
viewFlag	[in] 描画フラグ

Here is the call graph for this function:

Here is the caller graph for this function:

◆ draw3DSphere() [3/3]

void GxPrimitiveContext::draw3DSphere	(	const GxVector3 &	center,
		f32	radius,
		const GxColor	color,
		u32	divide,
		PRIMITIVE_FILL_MODE	fillMode,
		const GxPrimitiveMaterial &	material,
		u32	viewFlag = 0xFFFFFFFF )

3D球(ポジション指定)

Parameters

center	[in] 中心
radius	[in] 半径
color	[in] 色
divide	[in] 分割数
fillMode	[in] 塗りつぶしモード
material	[in] マテリアル
viewFlag	[in] 描画フラグ

Here is the call graph for this function:

◆ draw3DTriangleF()

void GxPrimitiveContext::draw3DTriangleF	(	const GxVector3 &	position0,
		const GxVector3 &	position1,
		const GxVector3 &	position2,
		const GxColor	color,
		PRIMITIVE_FILL_MODE	fillMode,
		const GxPrimitiveMaterial &	material,
		u32	viewFlag = 0xFFFFFFFF )

3D三角形(Flat)

Parameters

position0	[in] 座標
position1	[in] 座標
position2	[in] 座標
color	[in] 色
fillMode	[in] 塗りつぶしモード
material	[in] マテリアル
viewFlag	[in] 描画フラグ

Here is the call graph for this function:

Here is the caller graph for this function:

◆ draw3DTriangleFan()

GxPrimitiveVertex * GxPrimitiveContext::draw3DTriangleFan	(	u32	vertexCount,
		const GxPrimitiveMaterial &	material,
		const GxVector3 &	priorityPoint,
		u32	viewFlag = 0xFFFFFFFF )

3Dトライアングルファン

Parameters

vertexCount	[in] 頂点数
material	[in] マテリアル
priorityPoint	[in] 描画優先度に使うポイント(ワールド座標系)
viewFlag	[in] 描画するビューフラグ

Returns: 頂点バッファ配列のポインタ

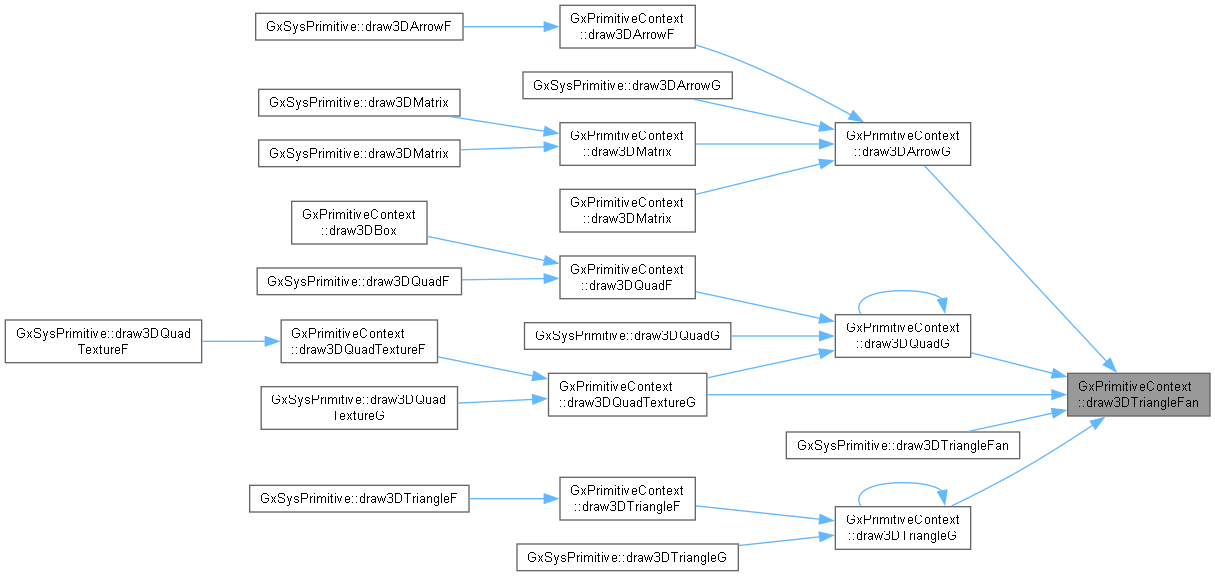

Here is the caller graph for this function:

◆ draw3DTriangleG()

void GxPrimitiveContext::draw3DTriangleG	(	const GxVector3 &	position0,
		const GxVector3 &	position1,
		const GxVector3 &	position2,
		const GxColor	color0,
		const GxColor	color1,
		const GxColor	color2,
		PRIMITIVE_FILL_MODE	fillMode,
		const GxPrimitiveMaterial &	material,
		u32	viewFlag = 0xFFFFFFFF )

3D三角形(Gradation)

Parameters

position0	[in] 頂点
position1	[in] 頂点
position2	[in] 頂点
color0	[in] 色
color1	[in] 色
color2	[in] 色
fillMode	[in] 塗りつぶしモード
material	[in] マテリアル
viewFlag	[in] 描画するビューフラグ

Here is the call graph for this function:

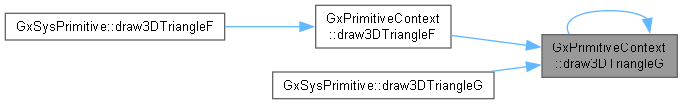

Here is the caller graph for this function:

◆ draw3DTriangleList()

GxPrimitiveVertex * GxPrimitiveContext::draw3DTriangleList	(	u32	vertexCount,
		const GxPrimitiveMaterial &	material,
		const GxVector3 &	priorityPoint,
		u32	viewFlag = 0xFFFFFFFF )

3Dトライアングルリスト

Parameters

vertexCount	[in] 頂点数
material	[in] マテリアル
priorityPoint	[in] 描画優先度に使うポイント(ワールド座標系)
viewFlag	[in] 描画するビューフラグ

Returns: 頂点バッファ配列のポインタ

Here is the caller graph for this function:

◆ draw3DTriangleStrip()

GxPrimitiveVertex * GxPrimitiveContext::draw3DTriangleStrip	(	u32	vertexCount,
		const GxPrimitiveMaterial &	material,
		const GxVector3 &	priorityPoint,
		u32	viewFlag = 0xFFFFFFFF )

3Dトライアングルストリップ

Parameters

vertexCount	[in] 頂点数
material	[in] マテリアル
priorityPoint	[in] 描画優先度に使うポイント(ワールド座標系)
viewFlag	[in] 描画するビューフラグ

Returns: 頂点バッファ配列のポインタ

Here is the caller graph for this function:

◆ setRenderTarget()

void GxPrimitiveContext::setRenderTarget	(	GxRenderTexture *	pRenderTarget,
		f32	priority,
		u32	viewFlag = 0xFFFFFFFF )

レンダーターゲットの設定

Parameters

pRenderTarget	[in] レンダーターゲット
priority	[in] 優先度
viewFlag	[in] 描画するビューフラグ

Here is the call graph for this function:

◆ setScissorRect()

void GxPrimitiveContext::setScissorRect	(	const GxRect &	rect,
		f32	priority,
		u32	viewFlag = 0xFFFFFFFF )

シザリング矩形の設定

Parameters

rect	[in] シザリング矩形
priority	[in] 優先度
viewFlag	[in] 描画するビューフラグ

Here is the call graph for this function:

Here is the caller graph for this function:

◆ setScreenSize()

void GxPrimitiveContext::setScreenSize	(	const GxSize &	size,
		f32	priority )

スクリーンサイズを設定

Parameters

size	[in] サイズ(0の場合はデフォルトに戻す)
priority	[in] 優先度

Here is the call graph for this function:

The documentation for this class was generated from the following files:

C:/Users/t-arai/Documents/workspace/orochi_package_windows/middleware/GxCore/src/GxPrimitiveContext.h
C:/Users/t-arai/Documents/workspace/orochi_package_windows/middleware/GxCore/src/GxPrimitiveContext.cpp
C:/Users/t-arai/Documents/workspace/orochi_package_windows/middleware/GxCore/src/GxPrimitiveContext.inl

Friends

初期化

操作

Additional Inherited Members

Detailed Description

Member Function Documentation

◆ clear()

◆ copyRenderTargetToTexture()

◆ draw2DArrowF()

◆ draw2DArrowG()

◆ draw2DCircleF()

◆ draw2DCircleG()

◆ draw2DCustom()

◆ draw2DFanF()

◆ draw2DFanG()

◆ draw2DLineF()

◆ draw2DLineG()

◆ draw2DLineList()

◆ draw2DLineStrip()

◆ draw2DPoint()

◆ draw2DPolyLineF()

◆ draw2DPolyLineG()

◆ draw2DQuadList()

◆ draw2DRectF() [1/3]

◆ draw2DRectF() [2/3]

◆ draw2DRectF() [3/3]

◆ draw2DRectG() [1/3]

◆ draw2DRectG() [2/3]

◆ draw2DRectG() [3/3]

◆ draw2DRectTextureF() [1/2]

◆ draw2DRectTextureF() [2/2]

◆ draw2DRectTextureG() [1/4]

◆ draw2DRectTextureG() [2/4]

◆ draw2DRectTextureG() [3/4]

◆ draw2DRectTextureG() [4/4]

◆ draw2DTriangleF()

◆ draw2DTriangleFan()

◆ draw2DTriangleG()

◆ draw2DTriangleList()

◆ draw2DTriangleStrip()

◆ draw3DArrowF()

◆ draw3DArrowG()

◆ draw3DBox() [1/2]

◆ draw3DBox() [2/2]

◆ draw3DCustom()

◆ draw3DLineF()

◆ draw3DLineG()

◆ draw3DLineList()

◆ draw3DLineStrip()

◆ draw3DMatrix() [1/2]

◆ draw3DMatrix() [2/2]

◆ draw3DPoint()

◆ draw3DQuadF()

◆ draw3DQuadG()

◆ draw3DQuadList()

◆ draw3DQuadTextureF()

◆ draw3DQuadTextureG()

◆ draw3DSphere() [1/3]

◆ draw3DSphere() [2/3]

◆ draw3DSphere() [3/3]

◆ draw3DTriangleF()

◆ draw3DTriangleFan()

◆ draw3DTriangleG()

◆ draw3DTriangleList()

◆ draw3DTriangleStrip()

◆ setRenderTarget()

◆ setScissorRect()

◆ setScreenSize()
