同期実行ワーカースレッド管理クラス More...

#include <GxThread.h>

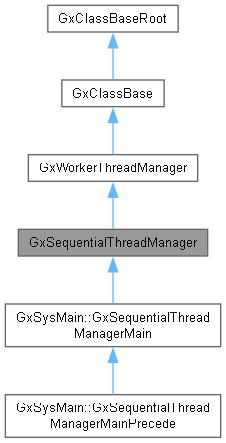

Inheritance diagram for GxSequentialThreadManager:

[legend]

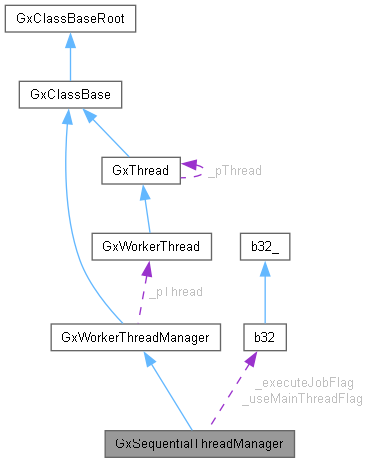

Collaboration diagram for GxSequentialThreadManager:

[legend]

Public Member Functions
アクセサ
GX_FORCE_INLINE u32	getMaxThread (void) override
	最大スレッド数を取得

GX_FORCE_INLINE u32	getNumThread (void) override
	スレッド数を取得

GX_FORCE_INLINE u32	getNumWorkerThread (void)
	ワーカースレッド数を取得

GX_FORCE_INLINE void	setNumWorkerThread (u32 num)
	スレッド数を設定

GX_FORCE_INLINE b32	isExecuteJob (void) const
	ジョブが実行中か判定

Public Member Functions inherited from GxWorkerThreadManager
virtual s32	getNumMaxJob (void)
	最大ジョブ数を取得

	GxWorkerThreadManager (void)
	コンストラクタ

virtual void	terminate (void)
	終了

Public Member Functions inherited from GxClassBase
constexpr	GxClassBase (void)
	コンストラクタ

constexpr	GxClassBase (const GxClassBase &base)
	コピーコンストラクタ

	~GxClassBase (void) override
	デストラクタ

Public Member Functions inherited from GxClassBaseRoot
constexpr	GxClassBaseRoot (void)
	コンストラクタ

constexpr	GxClassBaseRoot (const GxClassBaseRoot &)
	コピーコンストラクタ

virtual	~GxClassBaseRoot (void)
	デストラクタ

constexpr GxClassBaseRoot &	operator= (const GxClassBaseRoot &)
	代入演算子

virtual GxRtti &	getRtti (void) const =0
	Rttiの取得

virtual GX_FORCE_INLINE const GxTypedObject *	getDefaultObject (void)
	デフォルトオブジェクトを取得

GX_FORCE_INLINE b32	isDefaultObject (void)
	デフォルトオブジェクト判定

Protected Attributes
メンバ変数
GxJobInformation *	_pJobInformation
	ジョブ情報

s32	_executeJobIndex
	実行しているジョブインデックス

b32	_useMainThreadFlag
	メインスレッドを使用するか

b32	_executeJobFlag
	ジョブ実行中フラグ

s32	_numJob
	ジョブ数

Protected Attributes inherited from GxWorkerThreadManager
GxWorkerThread *	_pThread [GxThread::HARDWARE_THREAD_MAX]
	スレッド

u32	_numThread
	スレッド数

u32	_maxThread
	動的な最大スレッド数

s32	_maxJob
	最大ジョブ数

Friends
定義
class	GxWorkerThread

Friends inherited from GxWorkerThreadManager

初期化
	GxSequentialThreadManager (void)
	デフォルトコンストラクタ

	GxSequentialThreadManager (b32 useMainThreadFlag)
	コンストラクタ

	~GxSequentialThreadManager (void) override
	デストラクタ

void	initialize (GxThread::PRIORITY priority, s32 maxJob, u32 stackSize=GX_WORKER_THREAD_STACKSIZE) override
	初期化

void	initializeThreadLocalStorage (void) override
	TLSの初期化

操作
s32	addJob (GxClassBaseRoot *pObject, GX_OBJECT_FUNCTION pFunction) override
	ジョブ追加

s32	addJob (GxClassBaseRoot *pObject, GX_OBJECT_FUNCTION_PARAM pFunction, u32 argument, ARGUMENT_TYPE argumentType=ARGUMENT_TYPE::U32) override
	ジョブ追加

s32	addJob (GxClassBaseRoot pObject, GX_OBJECT_FUNCTION_POINTER pFunction, void pArgument) override
	ジョブ追加

void	startJob (void) override
	ジョブ実行開始

void	executeJob (GxThread *pThread) override
	ジョブ実行

virtual void	startWorkerThreadAll (void)
	ワーカースレッド実行開始

GX_FORCE_INLINE b32	isComplete (void) override
	全てのジョブが完了したか

Additional Inherited Members
Public Types inherited from GxWorkerThreadManager
enum class	ARGUMENT_TYPE { NONE , U32 , POINTER }
	引数の種別 More...

Static Public Member Functions inherited from GxClassBaseRoot
static GX_FORCE_INLINE GxRtti &	__getStaticRtti (void)
	Rttiの取得

Static Public Attributes inherited from GxWorkerThreadManager
static constexpr u32	WORKER_THREAD_MAX = 3
	ハードウェアスレッド最大数-1(1個は描画スレッドに使う)

static constexpr s32	INVALID_HANDLE = -1
	無効なハンドル

Protected Member Functions inherited from GxWorkerThreadManager

Detailed Description

同期実行ワーカースレッド管理クラス

Member Function Documentation

◆ addJob() [1/3]

s32 GxSequentialThreadManager::addJob	(	GxClassBaseRoot *	pObject,
		GX_OBJECT_FUNCTION	pFunction )

overridevirtual

ジョブ追加

Parameters

pObject	[in] オブジェクト
pFunction	[in] 関数

Returns: ジョブハンドル

Implements GxWorkerThreadManager.

Reimplemented in GxSysMain::GxSequentialThreadManagerMainPrecede.

Here is the caller graph for this function:

◆ addJob() [2/3]

s32 GxSequentialThreadManager::addJob	(	GxClassBaseRoot *	pObject,
		GX_OBJECT_FUNCTION_PARAM	pFunction,
		u32	argument,
		ARGUMENT_TYPE	argumentType = ARGUMENT_TYPE::U32 )

overridevirtual

ジョブ追加

Parameters

pObject	[in] オブジェクト
pFunction	[in] 関数
argument	[in] 引数
argumentType	[in] 引数の種類

Returns: ジョブハンドル

Implements GxWorkerThreadManager.

Reimplemented in GxSysMain::GxSequentialThreadManagerMainPrecede.

◆ addJob() [3/3]

s32 GxSequentialThreadManager::addJob	(	GxClassBaseRoot *	pObject,
		GX_OBJECT_FUNCTION_POINTER	pFunction,
		void *	pArgument )

overridevirtual

ジョブ追加

Parameters

pObject	[in] オブジェクト
pFunction	[in] 関数
argument	[in] 引数

Returns: ジョブハンドル

Implements GxWorkerThreadManager.

Reimplemented in GxSysMain::GxSequentialThreadManagerMainPrecede.

◆ executeJob()

void GxSequentialThreadManager::executeJob ( GxThread * pThread )

overrideprotectedvirtual

ジョブ実行

Parameters

pThread [in] スレッド

Implements GxWorkerThreadManager.

Reimplemented in GxSysMain::GxSequentialThreadManagerMainPrecede.

Here is the call graph for this function:

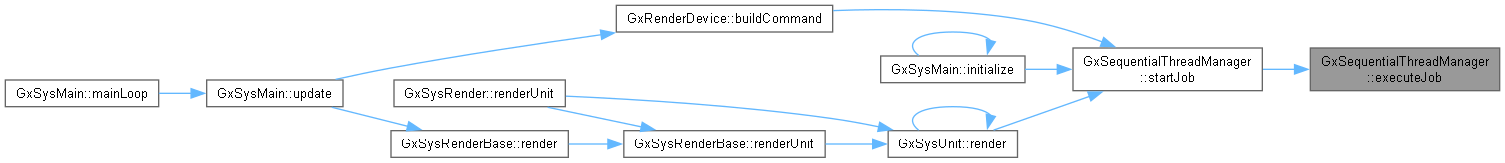

Here is the caller graph for this function:

◆ getMaxThread()

GX_FORCE_INLINE u32 GxSequentialThreadManager::getMaxThread ( void )

inlineoverridevirtual

最大スレッド数を取得

Reimplemented from GxWorkerThreadManager.

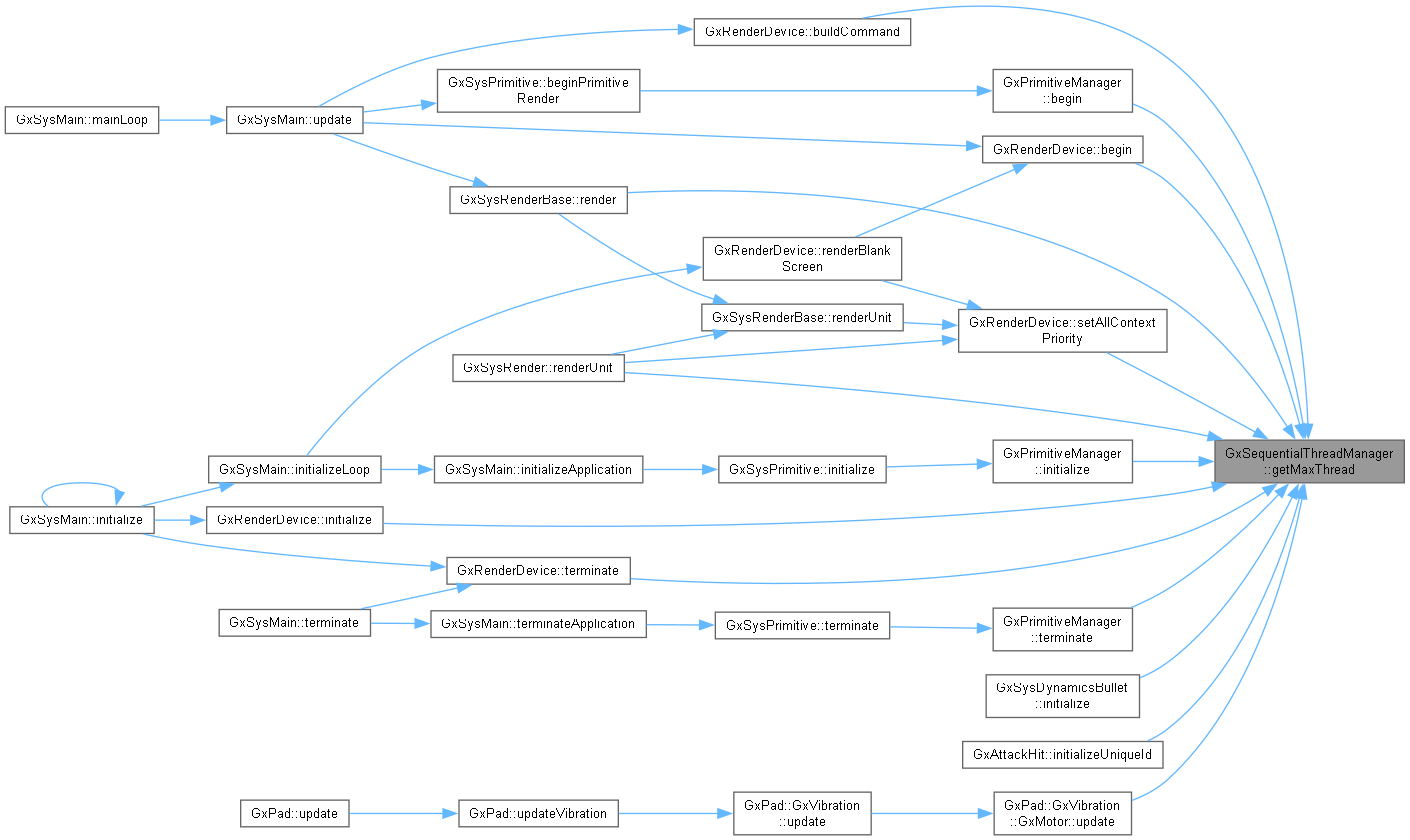

Here is the caller graph for this function:

◆ getNumThread()

GX_FORCE_INLINE u32 GxSequentialThreadManager::getNumThread ( void )

inlineoverridevirtual

スレッド数を取得

Reimplemented from GxWorkerThreadManager.

◆ initialize()

void GxSequentialThreadManager::initialize	(	GxThread::PRIORITY	priority,
		s32	maxJob,
		u32	stackSize = GX_WORKER_THREAD_STACKSIZE )

overridevirtual

初期化

Parameters

priority	[in] 優先度
maxJob	[in] ジョブ最大数
name	[in] スレッド名
stackSize	[in] スタックサイズ

Reimplemented from GxWorkerThreadManager.

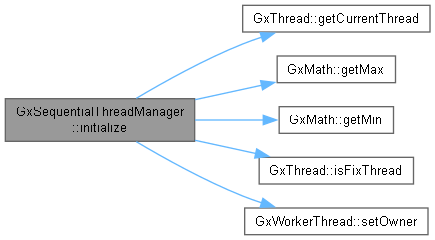

Here is the call graph for this function:

Here is the caller graph for this function:

◆ initializeThreadLocalStorage()

void GxSequentialThreadManager::initializeThreadLocalStorage ( void )

inlineoverrideprotectedvirtual

TLSの初期化

Implements GxWorkerThreadManager.

Reimplemented in GxSysMain::GxSequentialThreadManagerMain.

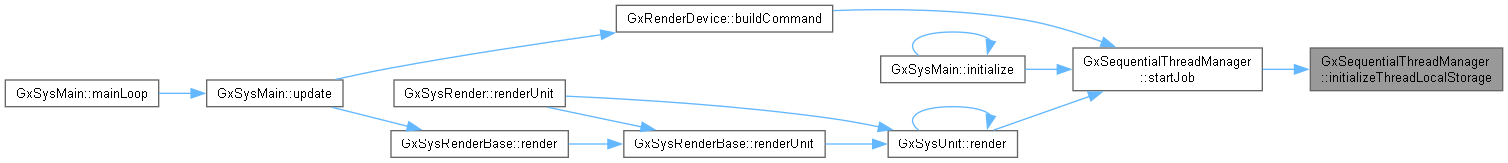

Here is the caller graph for this function:

◆ isComplete()

GX_FORCE_INLINE b32 GxSequentialThreadManager::isComplete ( void )

inlineoverrideprotectedvirtual

全てのジョブが完了したか

Implements GxWorkerThreadManager.

Reimplemented in GxSysMain::GxSequentialThreadManagerMainPrecede.

Here is the caller graph for this function:

◆ startJob()

void GxSequentialThreadManager::startJob ( void )

overridevirtual

ジョブ実行開始

Implements GxWorkerThreadManager.

Reimplemented in GxSysMain::GxSequentialThreadManagerMainPrecede.

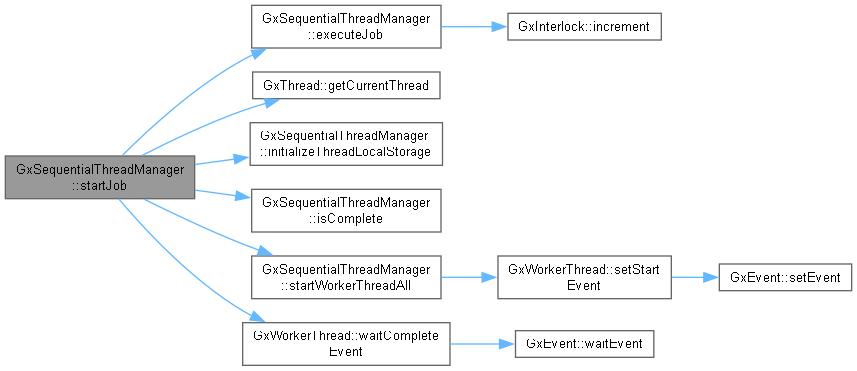

Here is the call graph for this function:

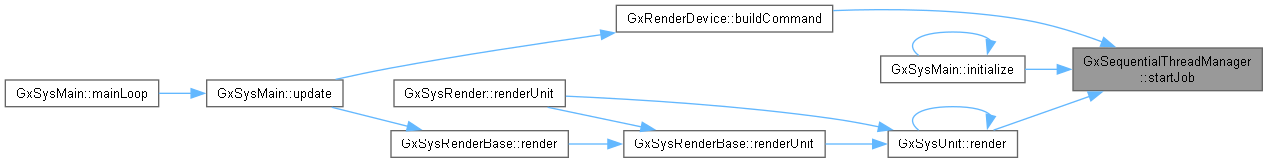

Here is the caller graph for this function:

◆ startWorkerThreadAll()

void GxSequentialThreadManager::startWorkerThreadAll ( void )

protectedvirtual

ワーカースレッド実行開始

Reimplemented in GxSysMain::GxSequentialThreadManagerMainPrecede.

Here is the call graph for this function:

Here is the caller graph for this function:

The documentation for this class was generated from the following files:

C:/Users/t-arai/Documents/workspace/orochi_package_windows/middleware/GxCore/src/GxThread.h
C:/Users/t-arai/Documents/workspace/orochi_package_windows/middleware/GxCore/src/GxThread.cpp
